Essential Knowledge of Gabion Mesh for Long Term Engineering Projects

Gabion mesh, also known as stone cage mesh or reno mattress, is a key flexible material widely used in global infrastructure projects. It is extensively applied in river regulation, slope protection, roadbed reinforcement, retaining wall construction, ecological restoration, and coastal revetment. For long term projects featuring large demand, long construction cycles, and harsh environments, gabion mesh has become a "core guarantee" due to its high stability, corrosion resistance, water permeability, and eco friendly features. This article breaks down its core structure, materials, production process, application advantages, and equipment requirements, helping purchasers and project managers make informed decisions.

1. Core Structure: Double Twist Weaving

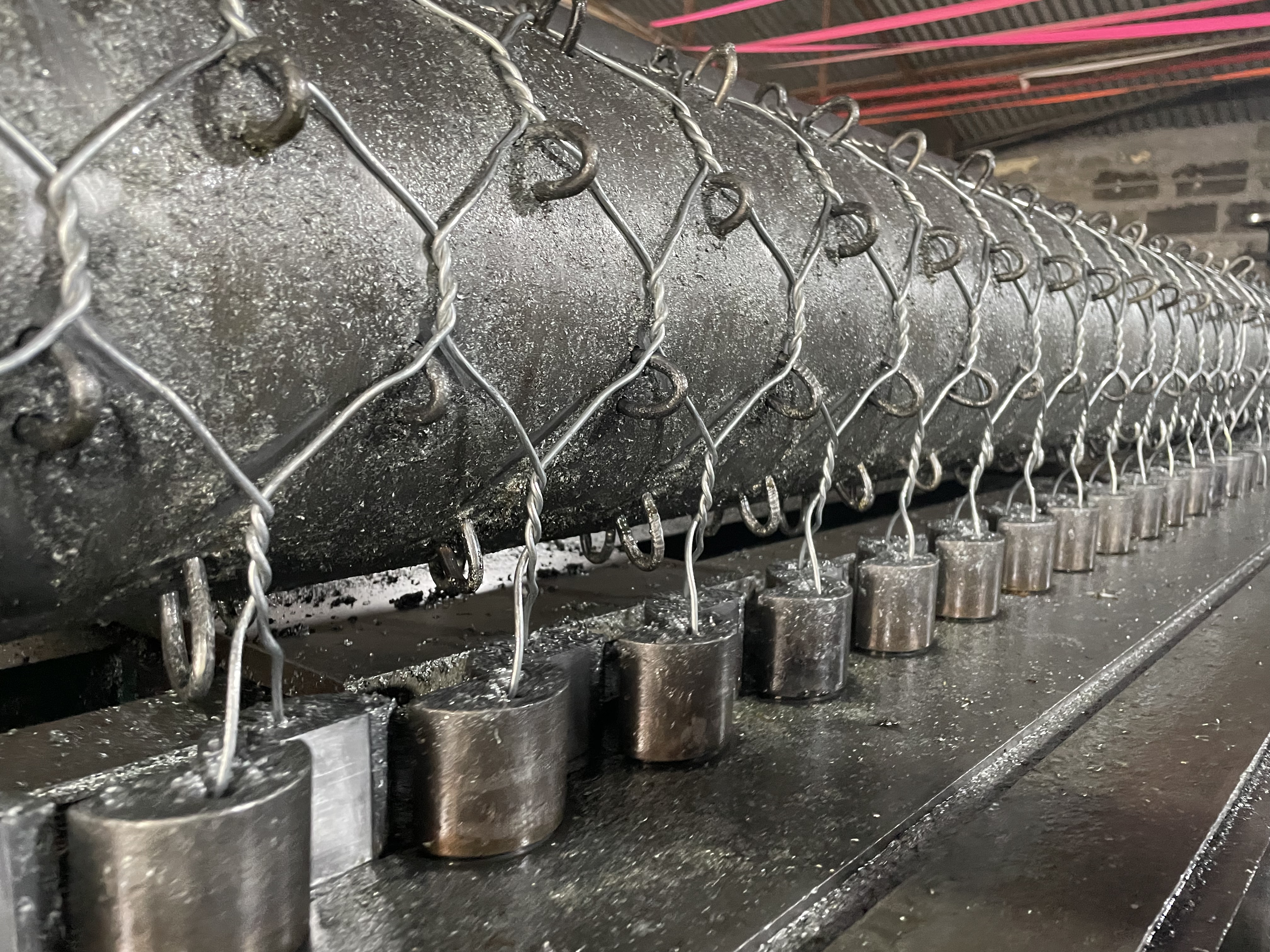

The foundation of high quality gabion mesh lies in its double twist weaving structure, a key feature specified by international standards like ASTM A975 and EN 102233. Unlike ordinary woven mesh, each mesh hole is formed by two steel wires twisted together. This design ensures that even if a single wire breaks, the entire mesh will not loosen or collapse, significantly enhancing structural safety and service life.

The double twist structure also provides excellent flexibility. It can adapt to terrain changes, minor foundation settlement, and slope adjustments without cracking or deforming. This makes it ideal for long term outdoor projects, reducing maintenance costs and ensuring long term stability.

2. Common Materials & Specifications

· Gabion mesh performance is directly determined by material selection and specifications, especially for long term use in humid, salty, or corrosive environments. Three main materials are widely used:

· Galvanized Steel Wire: Cost effective, with a hot dip zinc layer for basic corrosion resistance. Suitable for general outdoor projects, with a service life of 15–20 years.

· Zinc Aluminum Alloy Steel Wire: Superior corrosion resistance, ideal for coastal, high humidity, or high salt spray areas. Service life reaches 25–30 years.

· PVC Coated Steel Wire: Adds extra corrosion protection and aesthetics (available in green, gray, etc.). Suitable for ecological restoration and landscape projects.

· Key specifications include:

· Wire Diameter: Typically 2.2mm–4.0mm. Thicker wires suit high load, fast water flow projects (e.g., flood control), while thinner wires work for landscape or light duty protection.

· Mesh Size: Common sizes are 60×80mm (small stones, landscapes), 80×100mm (most river/slope projects), and 100×120mm (large stones, high stability long term projects).

· Sheet Dimensions: Width 2–5m, length 5–10m, customizable to site needs.

3. Complete Production Process

· High quality gabion mesh requires a stable, five step production line:

· Wire Straightening & Feeding: An automatic straightener ensures wires are flat, smooth, and free of oxidation. A synchronized feeding system guarantees uniform tension for stable weaving.

· Double Twist Weaving: The core step, performed by a professional gabion machine. A precision transmission system twists two wires tightly, forming uniform mesh holes that meet international standards.

· Mesh Cutting: An automatic cutter cuts the mesh to the required size (error within ±5mm), removing burrs for safe handling and easy on site assembly.

· Selvedge Strengthening: A special selvedge machine reinforces the edge with double strand twisted wire, preventing loosening during transport and installation.

· Finished Packing: A hydraulic baler compresses the mesh into bundles, reducing volume, saving storage/transport costs, and protecting the product from damage.

4. Application Advantages in Long Term Projects

· Compared to rigid materials like concrete, gabion mesh offers unique benefits for long term projects:

· Superior Water Permeability: Allows free water flow, reducing water pressure and preventing structural damage from accumulation. Critical for flood control and river regulation.

· Eco Friendly: Recyclable materials and gap filling with soil/stones promote plant growth, integrating construction with ecology—perfect for restoration projects.

· High Durability: Corrosion resistant wires last 15–30 years in harsh environments, reducing replacement frequency and long term costs.

· Efficient Construction: Pre fabricated mesh is quick to assemble on-site, shortening project cycles and lowering overall expenses.

5. Importance of Reliable Production Equipment

For manufacturers and contractors, a stable production line is non negotiable. A complete set of equipment—including gabion machine, straightener, cutter, selvedge machine, and hydraulic baler—enables 24/7 operation, low failure rates, and consistent quality that meets international standards.

In contrast, low quality equipment often causes loose weaving, uneven mesh size, frequent breakdowns, and high maintenance. This delays delivery, leads to unqualified products, and risks project rejection. Thus, choosing a supplier with mature equipment and technology is key to long term project success.

Conclusion

With the rapid development of global infrastructure and ecological governance, demand for high standard gabion mesh is rising. Understanding its structure, materials, production, and applications helps manufacturers, purchasers, and project managers make rational decisions, select suitable equipment, and ensure the long term stability of projects.

If you need advice on gabion mesh selection, equipment configuration, or customized solutions for your long term projects, please contact our company. We will arrange professional technicians to provide one on one consulting services and support your project success.
