MGM-3000/4000/5000
METAL TECH
Gabion wire mesh machine is a specialized weaving equipment designed to produce hexagonal wire mesh, which can be further folded and connected to form integrated gabion box structures.
The automatic gabion mesh hydraulic press works by interweaving horizontal and vertical wires to form stable mesh. These machines are widely used across the globe in water engineering, slope protection and mining stabilization, and gabion boxes are more economical compared with concrete structures. A complete gabion machine consists of a pay-off stand, wire feeder, tensioner, main weaving unit and mesh winder, generally requiring a workshop space of 32x15x6 meters (LXWXH).
Metal Tech gabion mesh machines adopt heavy-duty components such as gearboxes and beams, together with
premium materials including cast steel and quenched iron. All parts undergo fine processing, and we provide our customers with cost-effective gabion mesh machines at reasonable prices.Enjoy factory-direct pricing for automatic gabion wire mesh machines from professional Chinese manufacturers — contact us for an inquiry today!
Mesh Size (mm) | Max. Netting (mm) | Max. Dia of Weaving wire (mm) | Max.Dia of Bordering wire (mm) | Max Weaving vein No. | Power (kw) | Real Production Capacity | (m) LxWxH | Weight (T) |
60x80 | 4500 | 2.7 | 4.0 | 3/5 | 30 | 500-550 Sq.m /Hour | 6.8*1.4^2.4 | 14 |
5500 | 2.7 | 4.0 | 3/5 | 30 | 650-700 Sq.m /Hour | 7.82.4*2.4 | 15 | |
80x100 | 4500 | 3.0 | 4 0 | 3/5 | 30 | 550-600 Sq.m /Hour | 6.8x1.4x24 | 14 |
5500 | 3.0 | 4.0 | 3/5 | 30 | 700-750 Sq.m /Hour | 7.8x1.4x24 | 15 | |
100x120 | 4500 | 3.5 | 4.0 | 3/5 | 30 | 600-680 Sq.m /Hour | 6.8x1.4x2.4 | 14 |
5500 | 3.5 | 4.0 | 3/5 | 30 | 800-850 Sq.m /Hour | 7.8x1.4x2.4 | 15 |
Machine: Metal Tech applies advanced and reliable technology in the development of gabion press machines. Our press equipment is specially designed to facilitate the transportation of gabion boxes, supporting both forklift and crane handling. We provide high-pressure gabion pressing machines that can compress gabion boxes by over 15% in volume compared with standard models, greatly saving storage and shipping space.
Metal tech gabion machines are compatible with various wire types, such as low carbon galvanized wire, steel wire, PVC coated wire and galvanized wire with tensile strength up to 1780N. We have full confidence in our high-quality equipment and stable performance.
Metal Tech has been a professional supplier of gabion mesh machines in China for many years. Our gabion wire mesh machines feature high quality and satisfy diverse requirements from both domestic and overseas clients. We can quickly customize and supply gabion production lines with special specifications for customers, regardless of order volume. Thanks to our reliable gabion wire mesh machines, Metal Tech has become one of the leading wholesale manufacturers in China. Contact us now to get the latest wholesale gabion mesh machine price!
Gabion wall mesh machine for Bank protection: gabion structures are highly effective for river bank and slope protection, fully utilizing the unique advantages of gabions to achieve ideal effects that other methods cannot match.
Gabion wall mesh machine for protection of scenic spots: gabions used in urban and scenic areas can effectively protect buildings from erosion. In urban rivers, gabion embankments are space-saving, neat and aesthetically pleasing, with stone-filled mesh boxes blending naturally into the environment.
Gabion wall mesh machine for flood control: Gabions are foldable for easy transportation. Once on site, they can be quickly assembled into cages to block floodwater, forming an excellent protective structure.
♦ Wire Pay Off
♦ Tension Machine

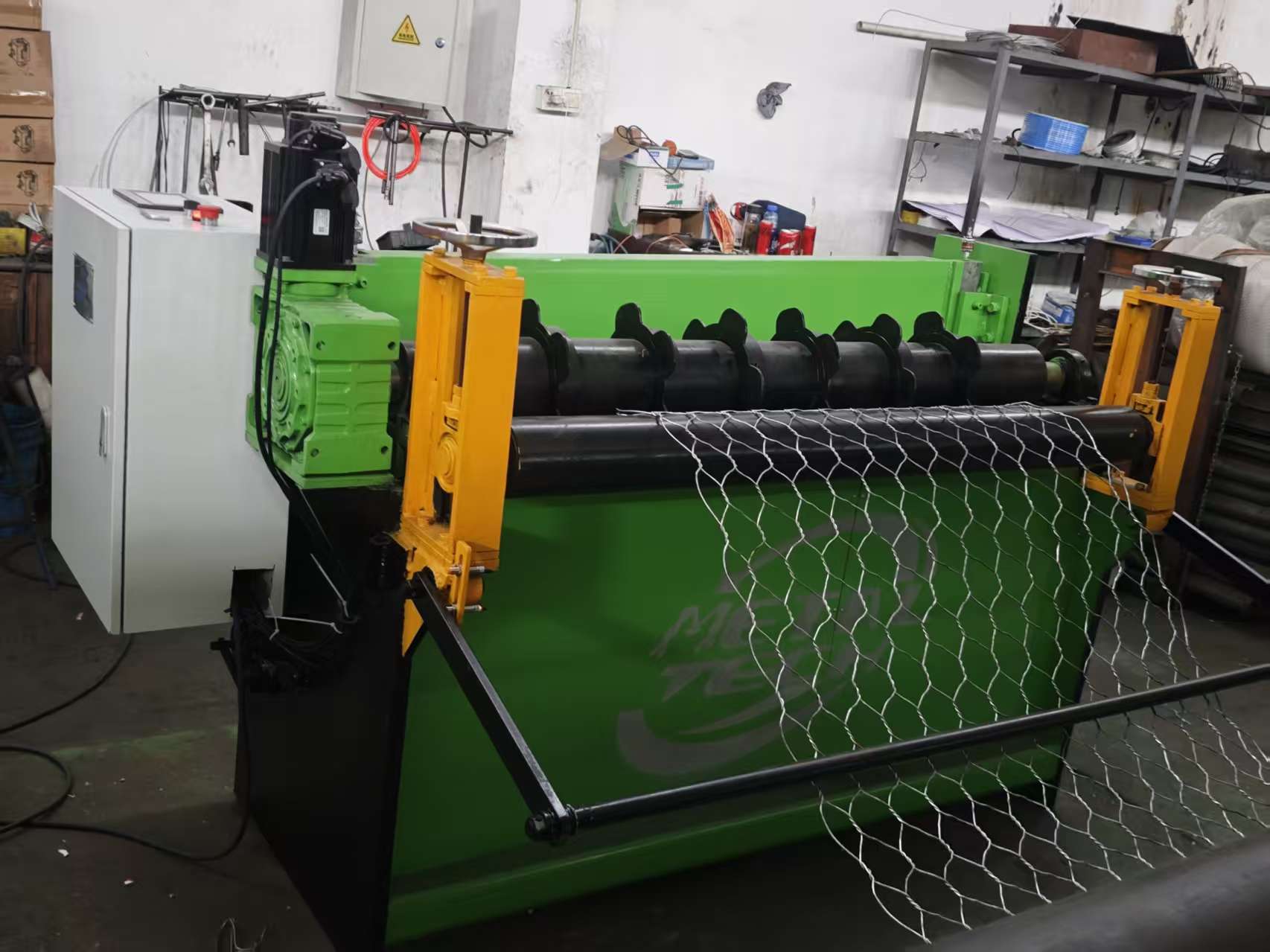

♦ Main Machine

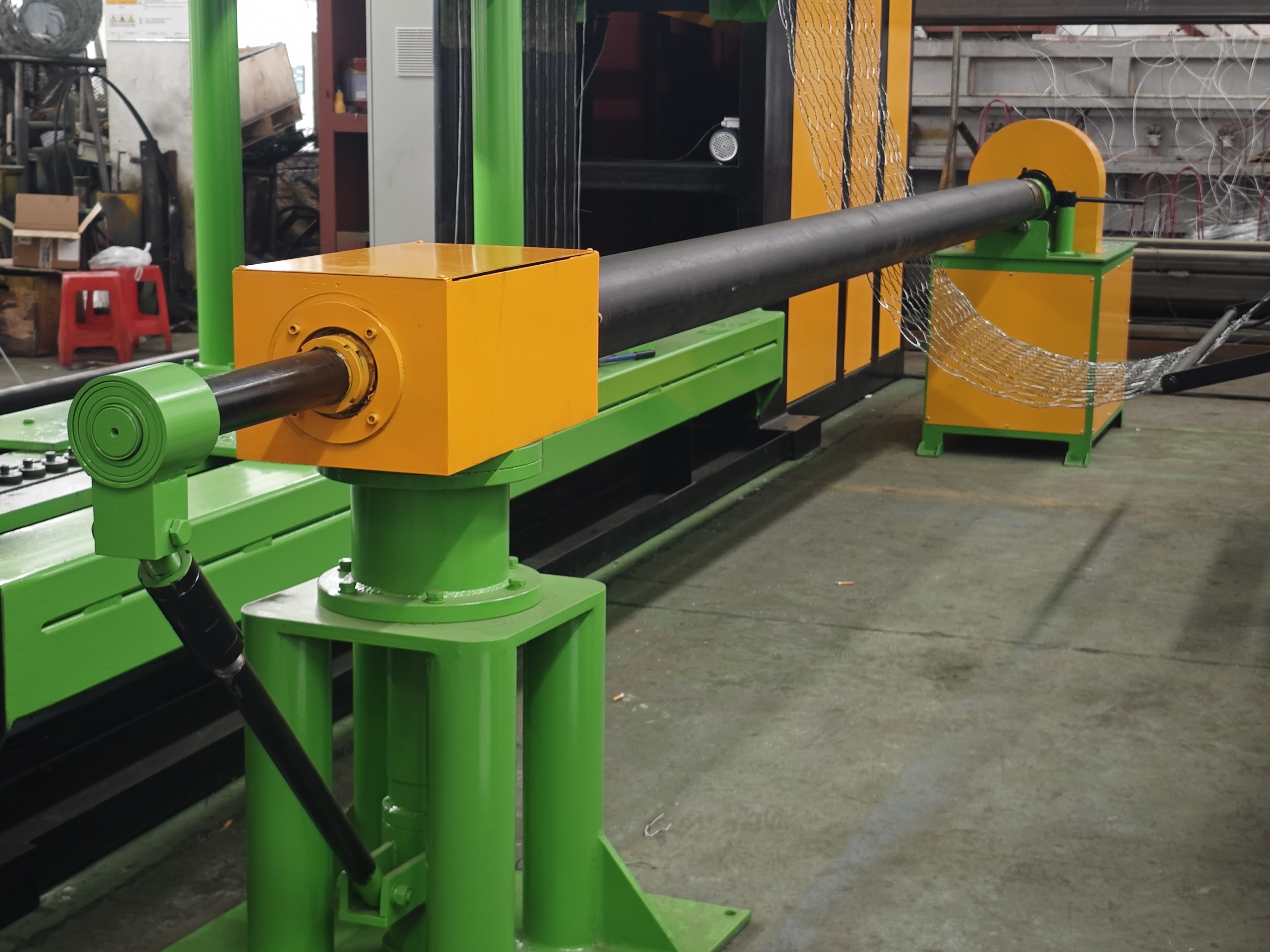

♦ Net Winding Machine
♦ Spiral Coiling Machine
