MGM-3000/4000/5000
METAL TECH
Hexagonl wire mesh gabion machine is a kind of wire mesh machine to produce hexagonal wire mesh, then to fold and connect each other net to complete gabion box mesh machine.

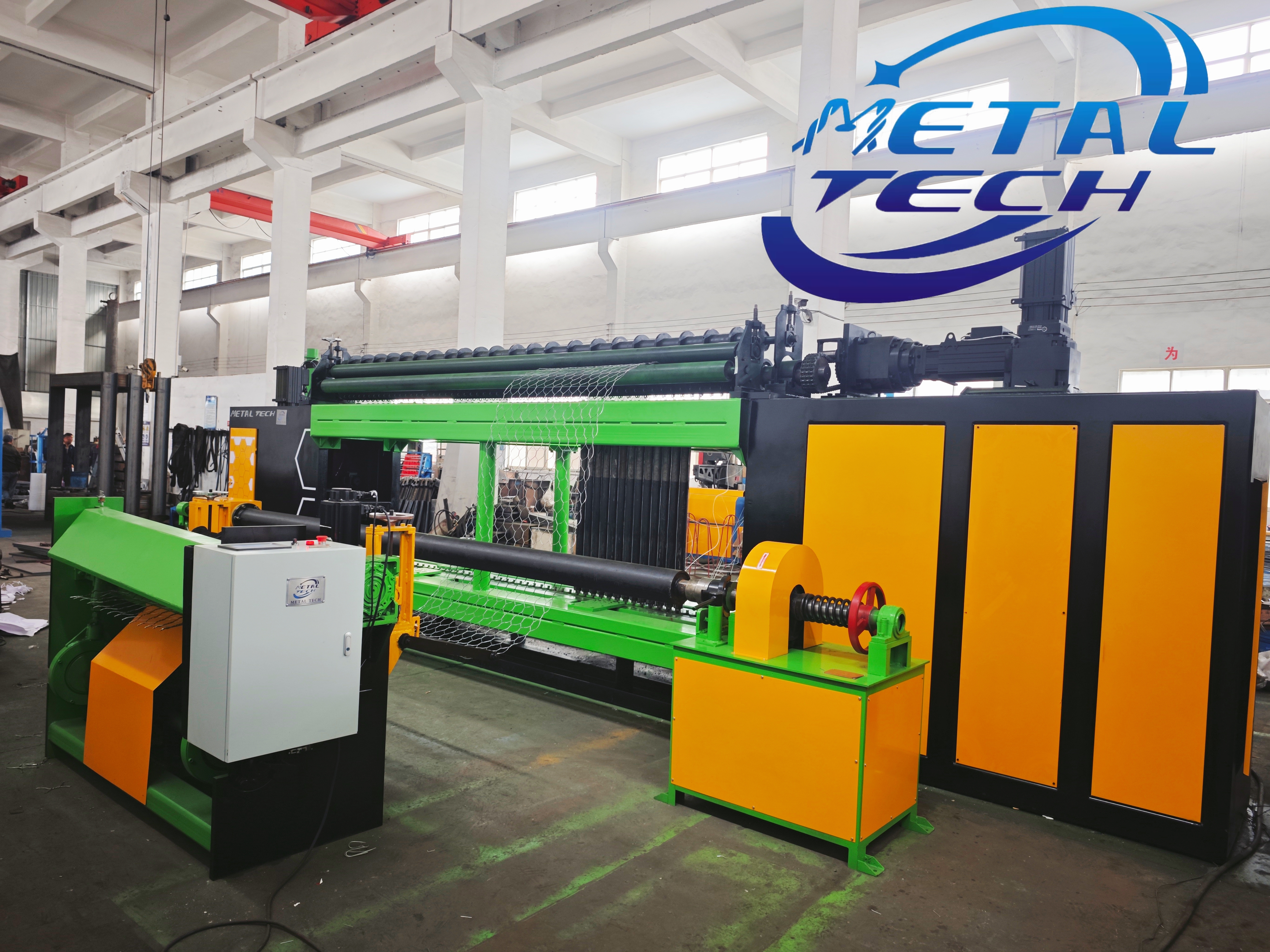

The basic working principle of automatic gabion mesh hydraulic press machine is horizontal wire netting and interlacing with vertical wire. Gabion machine and gabion mesh machine is widely used for water engineering, hill mountain protection and mining protection, etc in all over the worid, the gabion box is more economic than concrete products. Gabion machine includes wire pay-off frame, wire pay-off, wire tension machine, main netting machine and net winding machine, the workshop size usually requests 32x15x6 meters (LXWXH).
Metal Tech gabion mesh machine use heavy duty raw materials like gear box, beam, and high-quality raw material like casting steel, quenching iron, etc. All parts are fine treatment And we always offer reasonable gabion mesh machine cost for all of our clients. Choose good price and quality gabion mesh machine.
Automatic gabion wire mesh machine price direct from China gabion mesh machine manufacturers, inquiry now!
Mesh Size (mm) | Max. Netting (mm) | Max. Dia of Weaving wire (mm) | Max.Dia of Bordering wire (mm) | Max Weaving vein No. | Power (kw) | Real Production Capacity | (m) LxWxH | Weight (T) |
60x80 | 4500 | 2.7 | 4.0 | 3/5 | 30 | 500-550 Sq.m /Hour | 6.8*1.4^2.4 | 14 |
5500 | 2.7 | 4.0 | 3/5 | 30 | 650-700 Sq.m /Hour | 7.82.4*2.4 | 15 | |
80x100 | 4500 | 3.0 | 4 0 | 3/5 | 30 | 550-600 Sq.m /Hour | 6.8x1.4x24 | 14 |
5500 | 3.0 | 4.0 | 3/5 | 30 | 700-750 Sq.m /Hour | 7.8x1.4x24 | 15 | |
100x120 | 4500 | 3.5 | 4.0 | 3/5 | 30 | 600-680 Sq.m /Hour | 6.8x1.4x2.4 | 14 |
5500 | 3.5 | 4.0 | 3/5 | 30 | 800-850 Sq.m /Hour | 7.8x1.4x2.4 | 15 |
Machine: Metal tech equips its gabion pressing machines with advanced and time-tested technology. We have engineered a specialized press model that supports efficient handling of gabion boxes via both forklifts and cranes, ensuring smooth logistics during transportation. Our high-pressure gabion compression solution offers over 15% higher packing density compared to standard machines, significantly reducing storage and transportation costs while maintaining structural integrity.
Metal tech gabion machine are compatible with a wide range of wire materials, including low carbon galvanized wire, steel wire, PVC coated wire and galvanized wire, all of which can reach a tensile strength of up to 1780N. Backed by our strict quality control and mature production technology, we hold full confidence in the stability and reliability of our machines.
Gabion wire mesh machines from Metal Tech are built with premium components, including NSK bearings, PARKER hydraulic systems, quenched and brazed half gears, and other high-grade parts. Supported by strict quality control systems throughout production, these features ensure outstanding performance and a long service life for our gabion machines. Inquire now for the latest competitive gabion mesh machine price!
Metal Tech has been a professional manufacturer and supplier of gabion mesh machines in China for many years. Our gabion wire mesh machines feature reliable quality and can satisfy diverse requirements from both domestic and overseas customers. We are able to quickly design and assemble customized gabion production lines with special specifications for clients, regardless of order size. With stable and high-performance gabion equipment, Metal Tech has become one of the well-known bulk suppliers of gabion wire mesh machines in China. Contact us today to get the latest wholesale gabion mesh machine price.
Gabion wall mesh machine for Bank protection: gabion structure represents a highly effective solution for river bank protection and slope stabilization, fully utilizing the unique advantages of gabion systems to deliver superior performance that other traditional methods cannot match.
Gabion wall mesh machine for protection of scenic spots: When used in urban areas and scenic zones, gabion systems effectively protect buildings and landscapes from erosion. In urban river courses, gabion embankments are widely adopted for their compact layout, neat appearance, and natural aesthetic, as the stone‑filled mesh boxes blend harmoniously with the surrounding environment.
Gabion wall mesh machine for flood control: Gabion cages are foldable for convenient transportation. Once delivered to the construction site, they can be quickly assembled and deployed to intercept floodwater, making them an ideal and reliable protective structure for flood control projects.
♦ Wire Pay Off
♦ Tension Machine

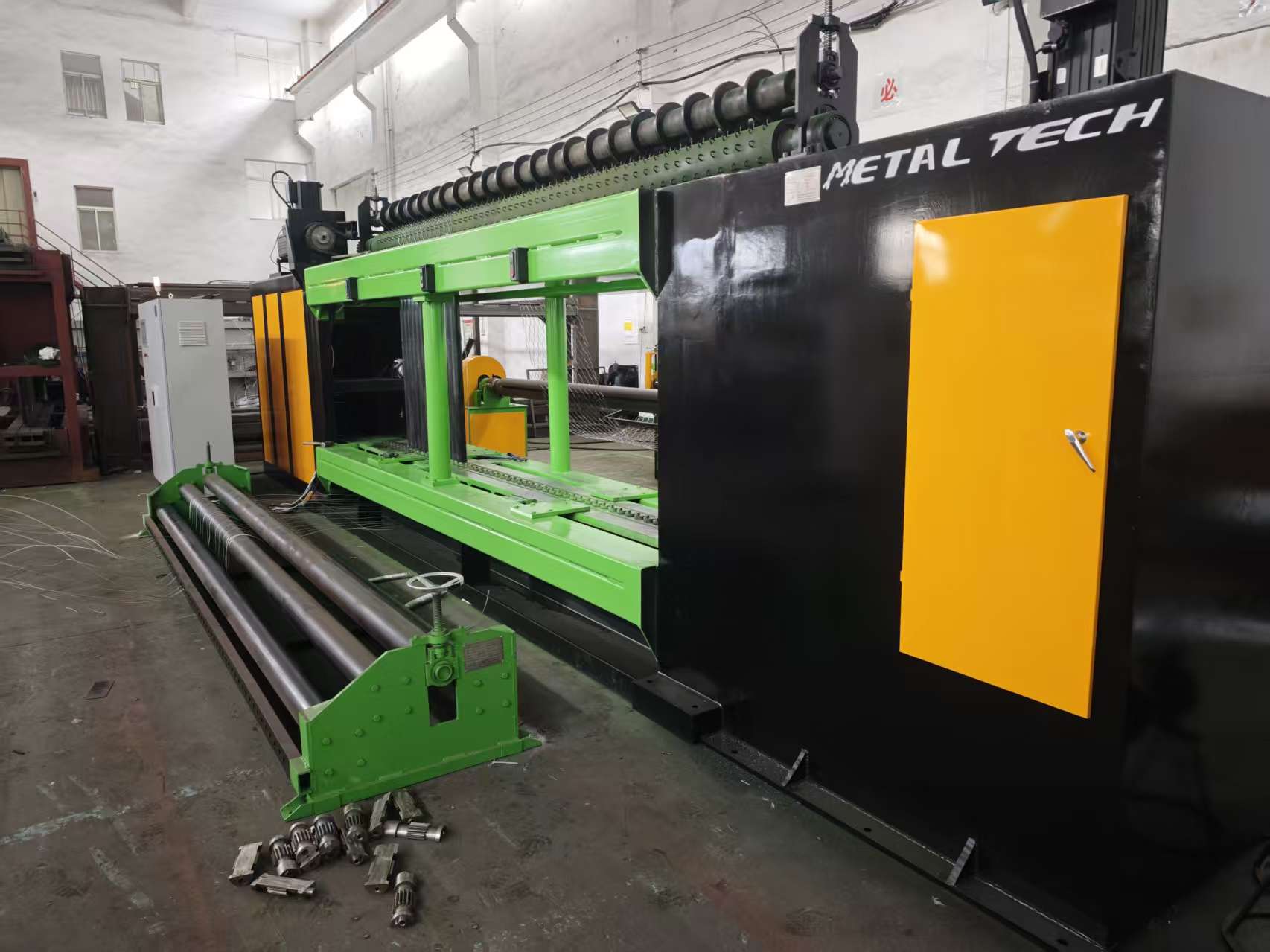

♦ Main Machine

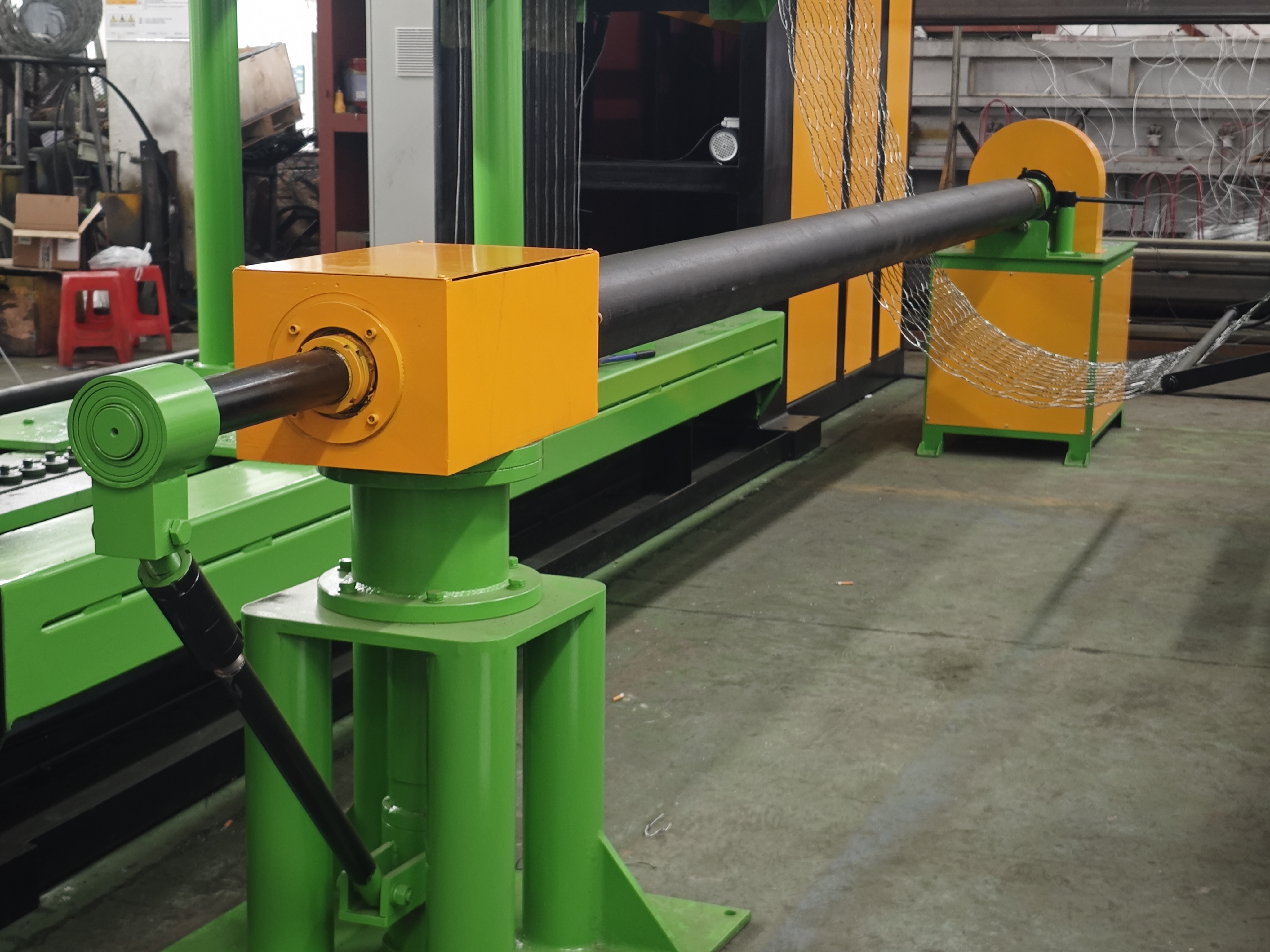

♦ Net Winding Machine
♦ Spiral Coiling Machine
