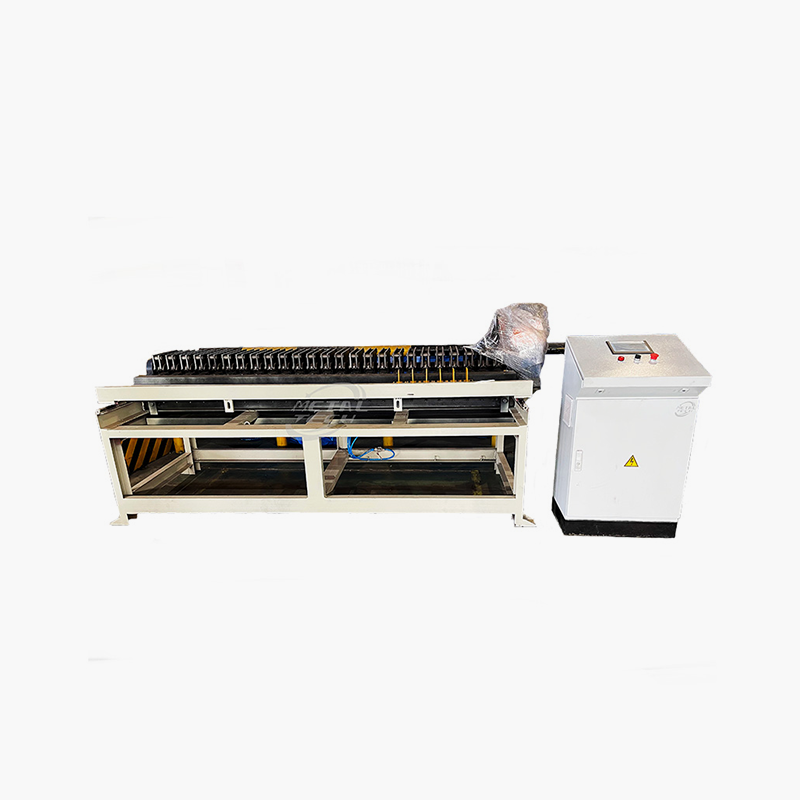

MBS-4 Net Selvedge Machine Manufacturer for Gabion Net Bordering

Gabion net selvage machine is working after the gabion net cut from cutting machine or cut by manual, put the net into this machine with straightening wire can bordering the net, then ready to make gabion box.

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • MBS-4

  • METAL TECH

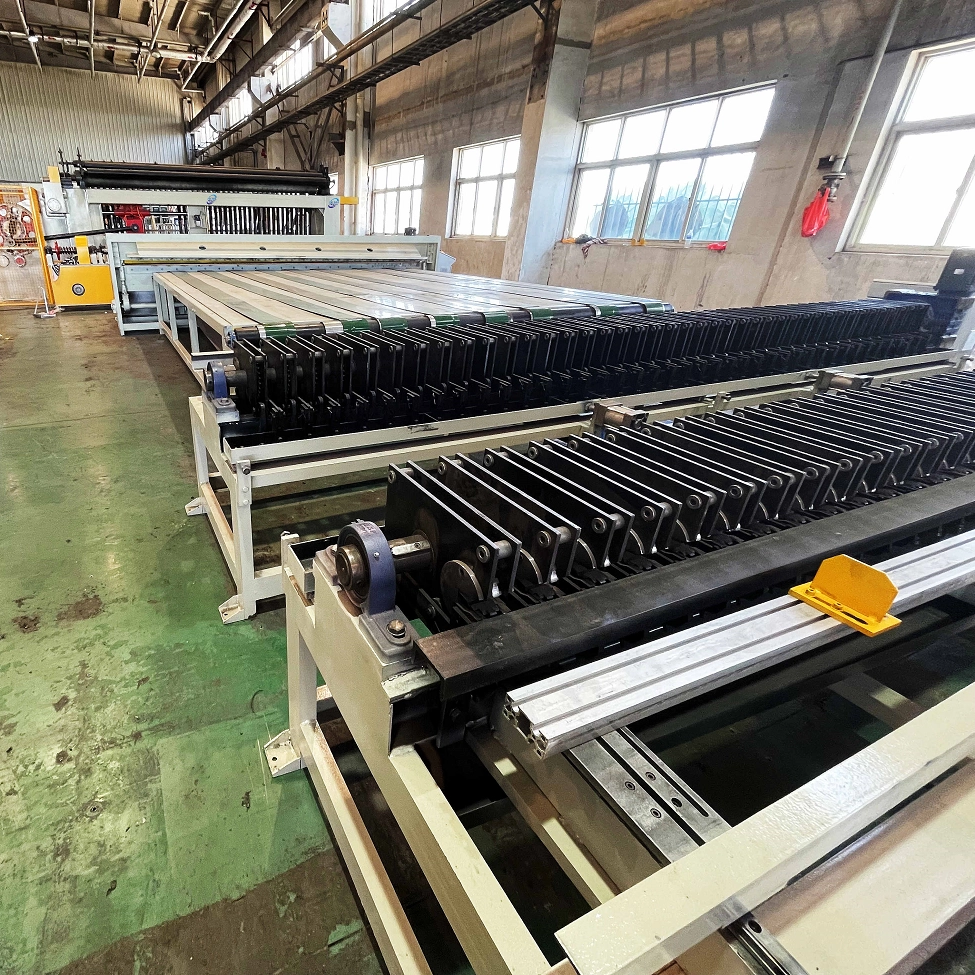

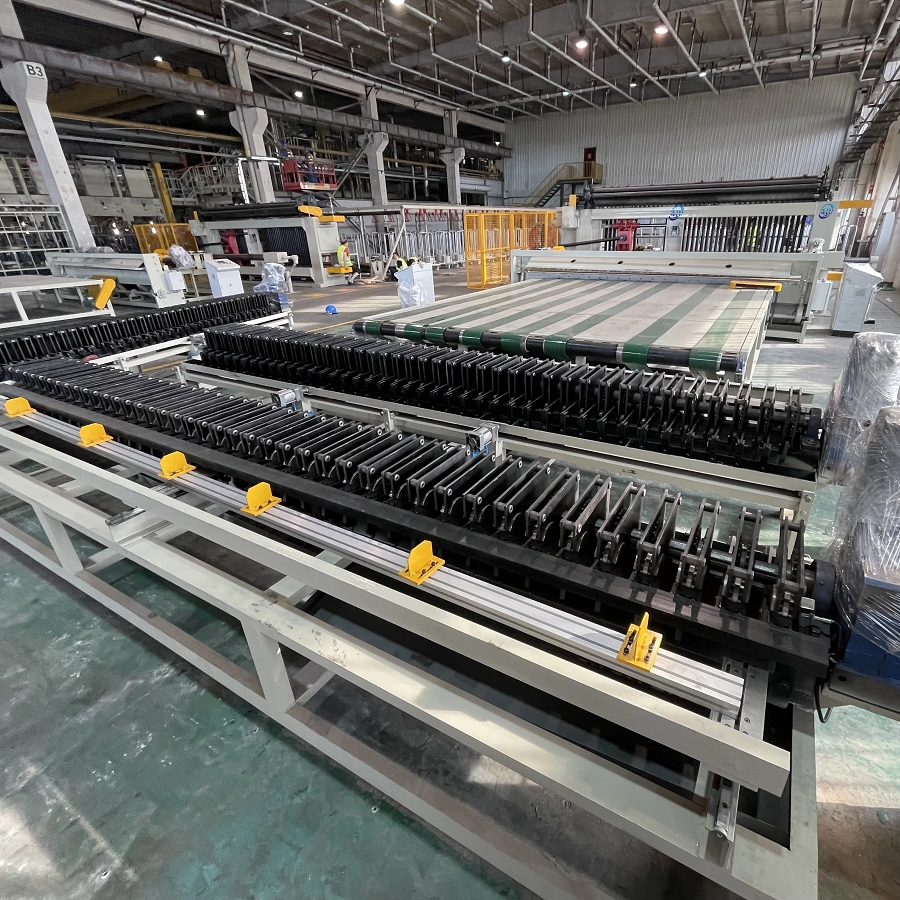

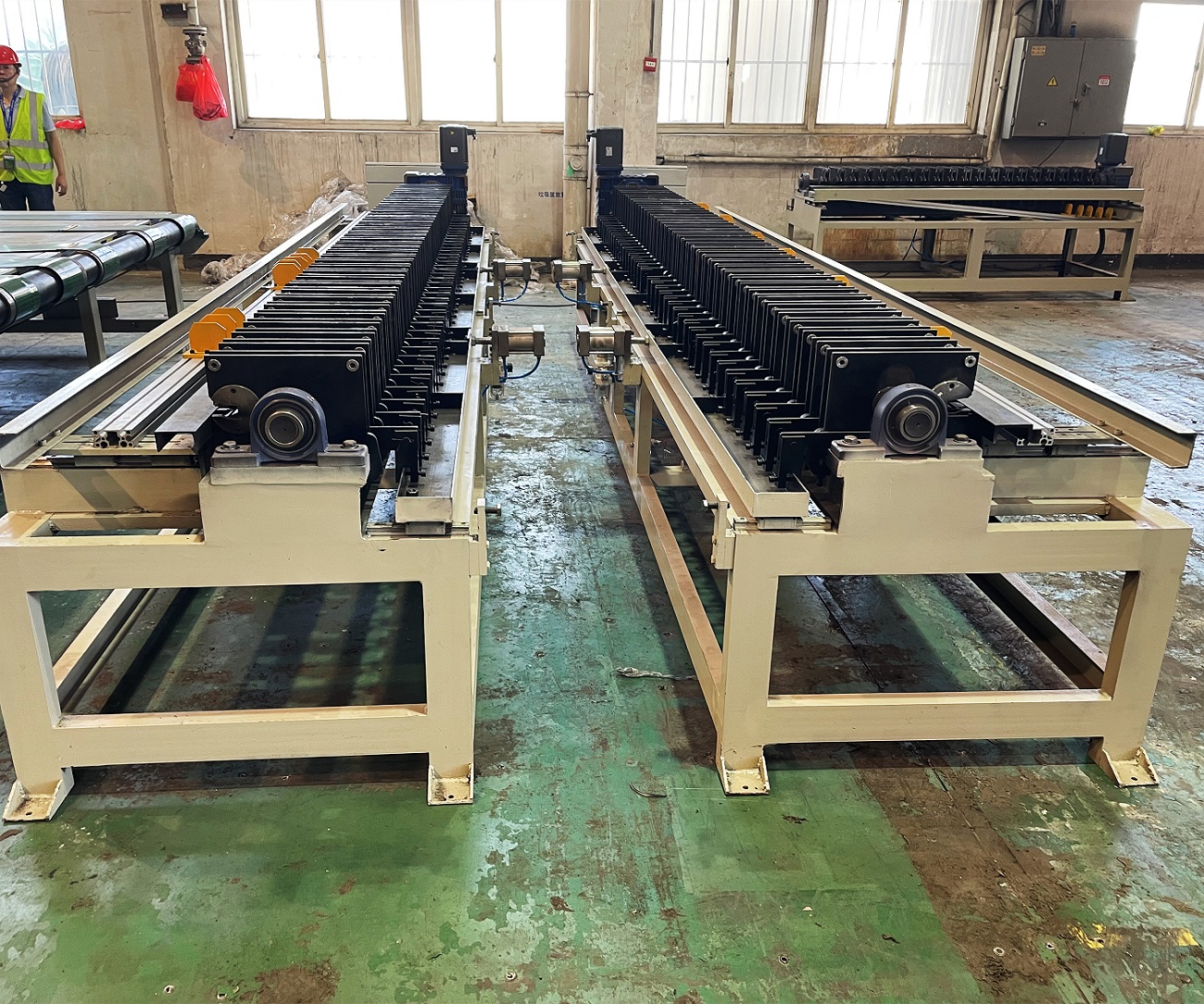

Gabion net selvage machine is working after the gabion net cut from cutting machine or cut by manual, put the net into this machine with straightening wire can bordering the net, then ready to make gabion box. Metal Tech Gabion net selvage works with servo motor and can be rolling up the twists 1, 1.5, 2, 2.5 turns. The working width is from 1 to 4 meters.




Parameters and Price:

Model

MBS-1000

MBS-2000

MBS-4000

Bordering gabion net width

1000mm

2000mm

4000mm

Mesh size

60×80-120x150mm

60×80-120x150mm

60×80-120x150mm

Bordering type

With twist and open mesh

With twist and open mesh

With twist and open mesh

Bordering cycle

1.5/ 2 /2.5

1.5/ 2 /2.5

1.5/ 2 /2.5

Power

3.5KW

3.5KW

7.5KW

Voltage

380V

Control system

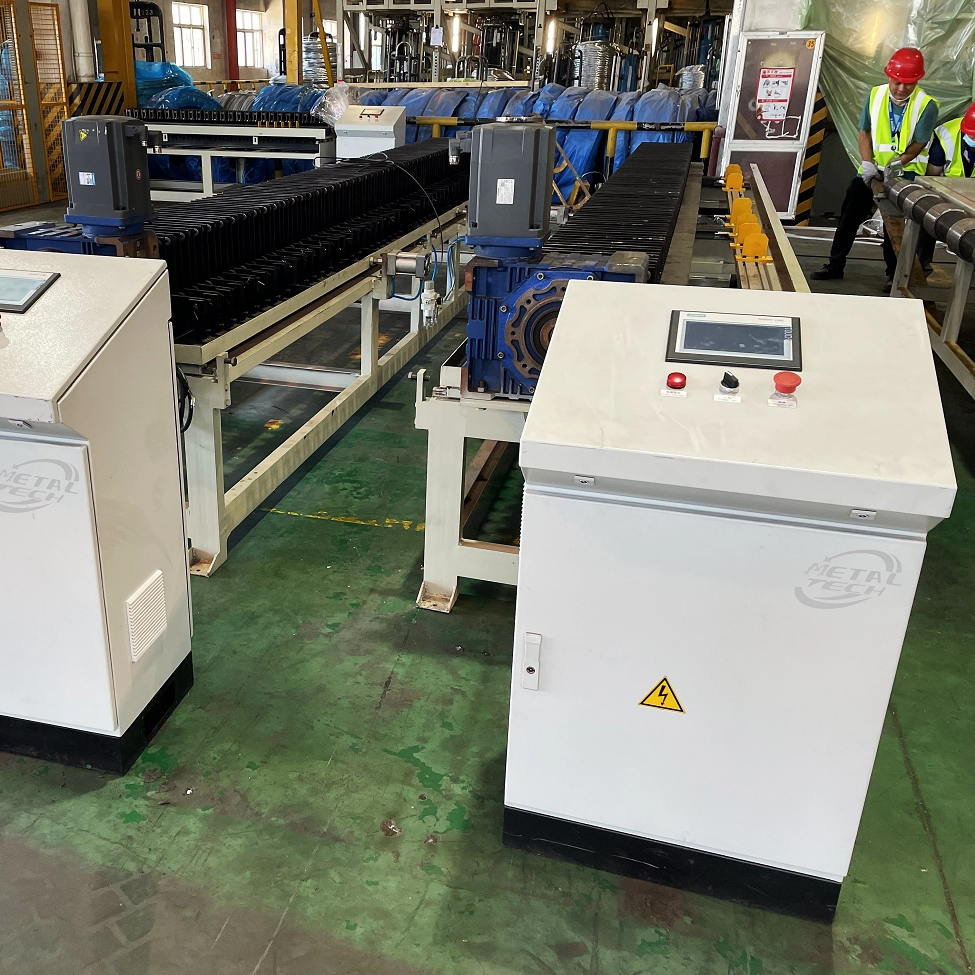

SERVO motor with PLC+ touch screen




Key point:

1. Metal Tech selvedge machine can bordering both net with twist and open type please check below drawing:

2. MGS-4000 can work with 1,2,3,4 meter gabion net , but the should move off the both end of bordering gear, it takes time. Usually regular working factory will equipped 1set 4meters machine with 1-2 sets 1meters machine.

3. Bordering gear is alloy steel material , and the life time is 3-4 years.
