MGS-3000/4000/5000
METAL TECH

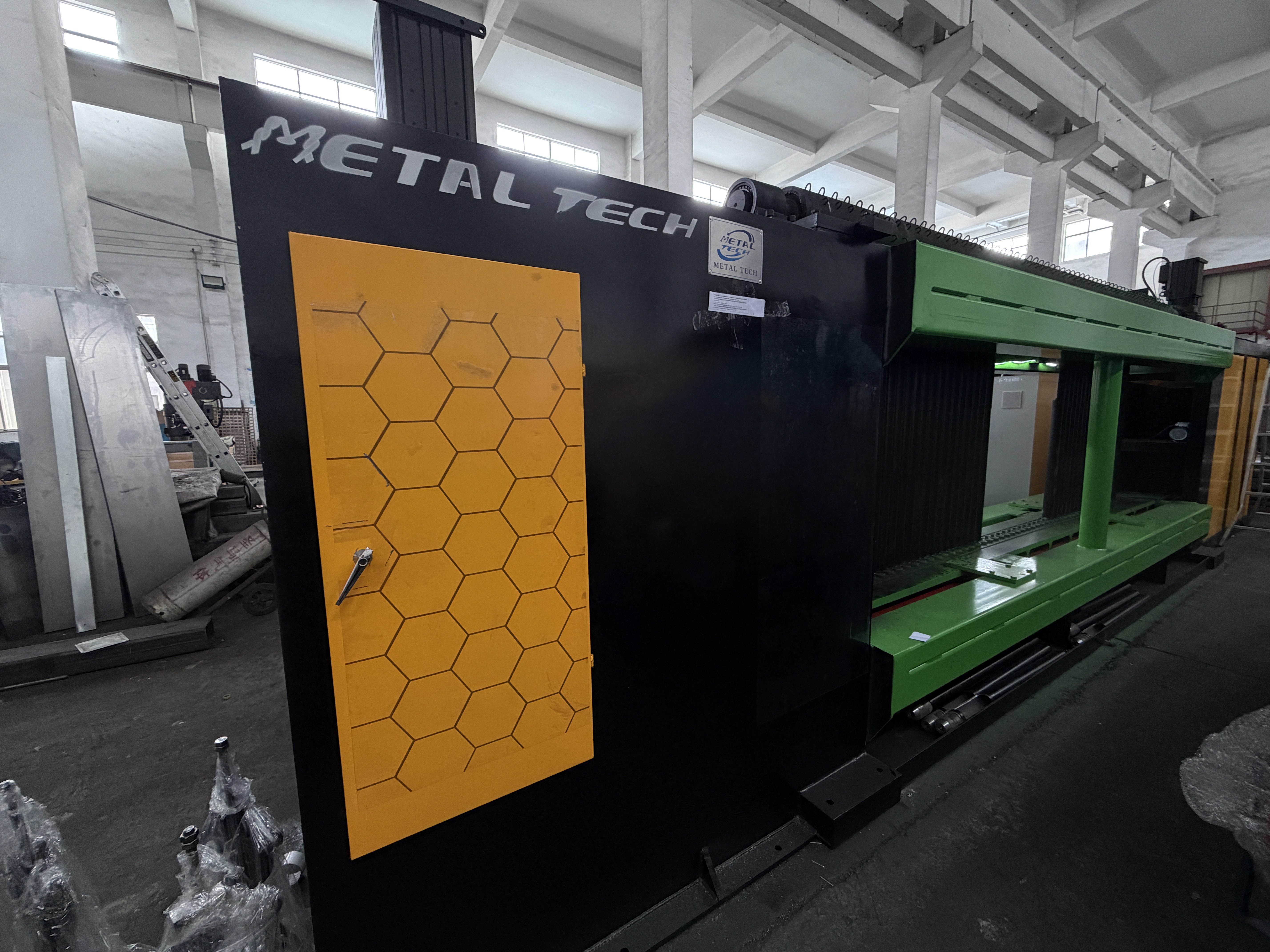

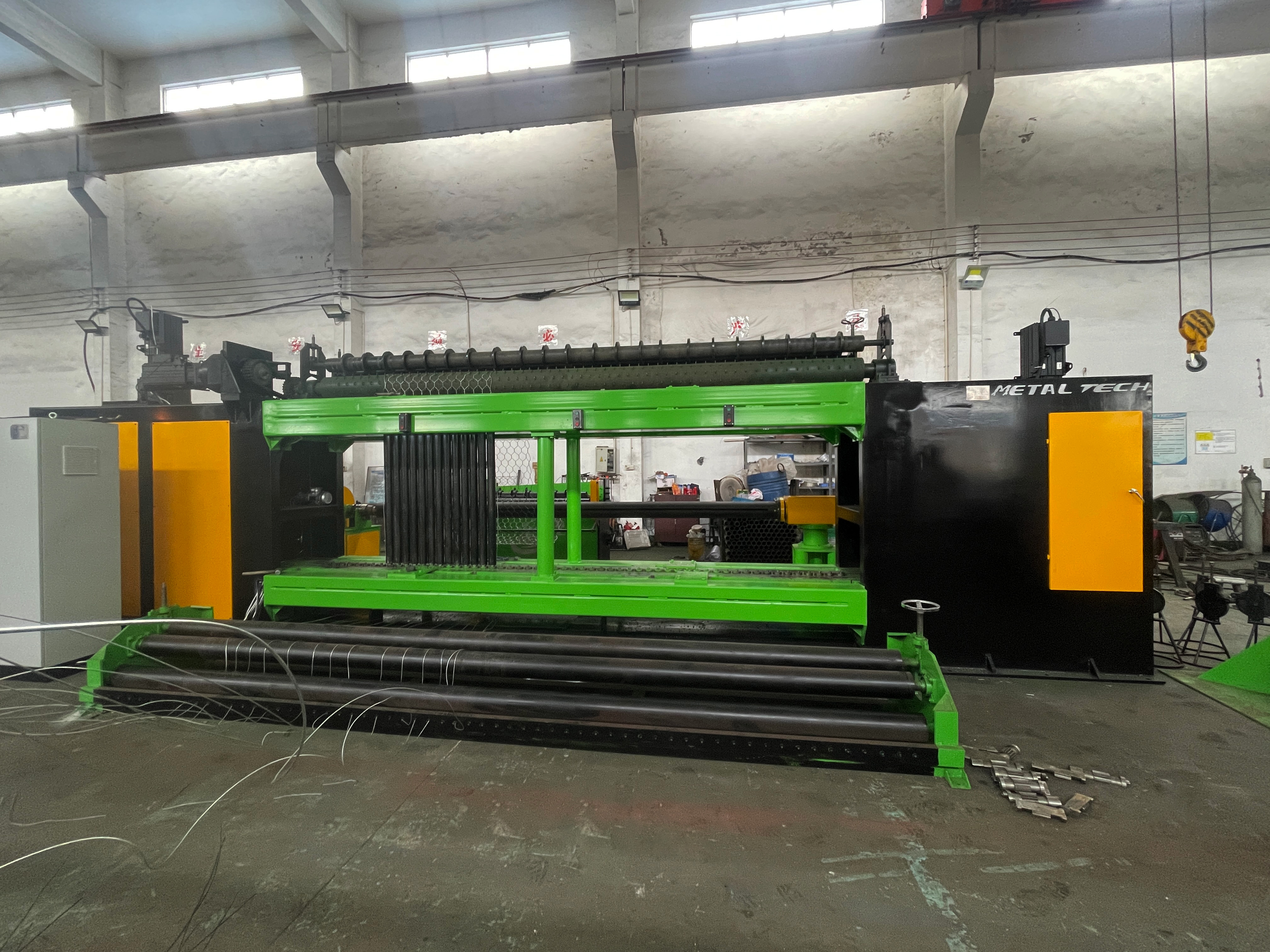

The MGS-4000 Heavy Duty CNC Servo Gabion Machine is an industrial-grade device built for high-efficiency hexagonal wire mesh production, with finished mesh foldable into complete gabion boxes for diverse engineering scenarios.
Supporting mesh sizes from 60×80mm to 100×120mm, it boasts a maximum weaving width of 5500mm, a top production capacity of 1700 sq.m/hour, and 78kw stable power for uninterrupted operation. Its core servo control system precisely drives the interlacing of horizontal and vertical wires, delivering uniform mesh structure and reliable strength.
This model is widely used in global water conservancy, slope stabilization, and mining protection projects, with gabion products offering greater cost-effectiveness and environmental advantages over concrete structures. A complete production line includes an intelligent wire pay-off stand, tension stabilizer, CNC weaving mainframe, and automatic winder, requiring a standard workshop space of 32×15×6 meters (L×W×H) for smooth workflow.
Mesh Size (mm) | Max. Netting (mm) | Max. Dia of Weaving wire (mm) | Max.Dia of Bordering wire (mm) | Max Weaving vein No. | Power (kw) | Real Production Capacity | (m) LxWxH | Weight (T) |
60x80 | 4500 | 2.7 | 4.0 | 3/5 | 78 | 1000-1100 Sq.m /Hour | 7.8*1.4^2.4 | 18 |
5500 | 2.7 | 4.0 | 3/5 | 78 | 1300-1400 Sq.m /Hour | 8.82.4*2.4 | 19 | |
80x100 | 4500 | 3.0 | 4 0 | 3/5 | 78 | 1300-1200 Sq.m /Hour | 7.8x1.4x24 | 18 |
5500 | 3.0 | 4.0 | 3/5 | 78 | 1400-1500 Sq.m /Hour | 8.8x1.4x24 | 19 | |
100x120 | 4500 | 3.5 | 4.0 | 3/5 | 78 | 1200-1360 Sq.m /Hour | 7.8x1.4x2.4 | 18 |
5500 | 3.5 | 4.0 | 3/5 | 78 | 1600-1700 Sq.m /Hour | 8.8x1.4x2.4 | 19 |
Technical Highlights of High-Pressure Gabion Press Machine
Leveraging cutting-edge servo control technology, Metal Tech has developed efficient press machines tailored for gabion production lines. Our press equipment is optimized for gabion box transportation, compatible with both forklift and crane handling to greatly enhance logistics convenience. The high-pressure compaction structure reduces gabion box volume by over 15%, significantly cutting storage and shipping costs—making it an ideal accessory for export-oriented projects.
ACompatible Wire Materials & Material Advantages
Metal This series of gabion weaving machines is compatible with a variety of industrial wires, including low-carbon galvanized wire, high-carbon steel wire, PVC-coated wire, and galvanized steel wire. It supports a maximum weaving wire diameter of 3.5mm and a maximum bordering wire diameter of 4.0mm, with wire tensile strength up to 1780N. The machine body is made of heavy-duty materials like cast steel and quenched iron, with key structural components undergoing precision heat treatment to ensure stability and durability under long-term heavy-load operation.
Core Performance Advantages
The MGS-4000 Servo Gabion Machine is equipped with premium components such as NSK precision bearings, PARKER hydraulic systems, and quenched-brazed half gears, paired with a PLC+touch screen intelligent control system for visual operation and one-click parameter adjustment. Strict quality control is implemented throughout the process, from parts processing to final assembly, following international standards to ensure long service life, low failure rate, and a cost-effective industrial production solution for customers.
Manufacturer Strengths & Service Advantages
As a seasoned gabion machinery manufacturer in China, Metal Tech has years of industry expertise and a complete R&D, production, and export service system. We provide customized solutions based on customer project requirements, responding quickly to both small trial orders and large-scale production lines. Our products are sold to multiple countries and regions worldwide, and with stable production capacity and reliable quality, we have become the preferred supplier for many water conservancy clients, supporting OEM/ODM customization and wholesale partnerships.
Expanded Application Scenarios
River Ecological Restoration: With high permeability, gabion mesh is ideal for river ecological management, balancing flood control and ecological protection to help restore natural aquatic ecosystems.
Road Slope Stabilization: In highway and railway slope protection, gabion structures effectively prevent soil erosion, enhance slope stability, and reduce engineering maintenance costs.
Emergency Flood Control: Foldable gabion mesh enables fast transportation and on-site assembly, allowing for the rapid construction of flood barriers during flood seasons to respond to sudden flood disasters.
Production Process of Gabion Wire Mesh Machine
♦ Wire Pay Off

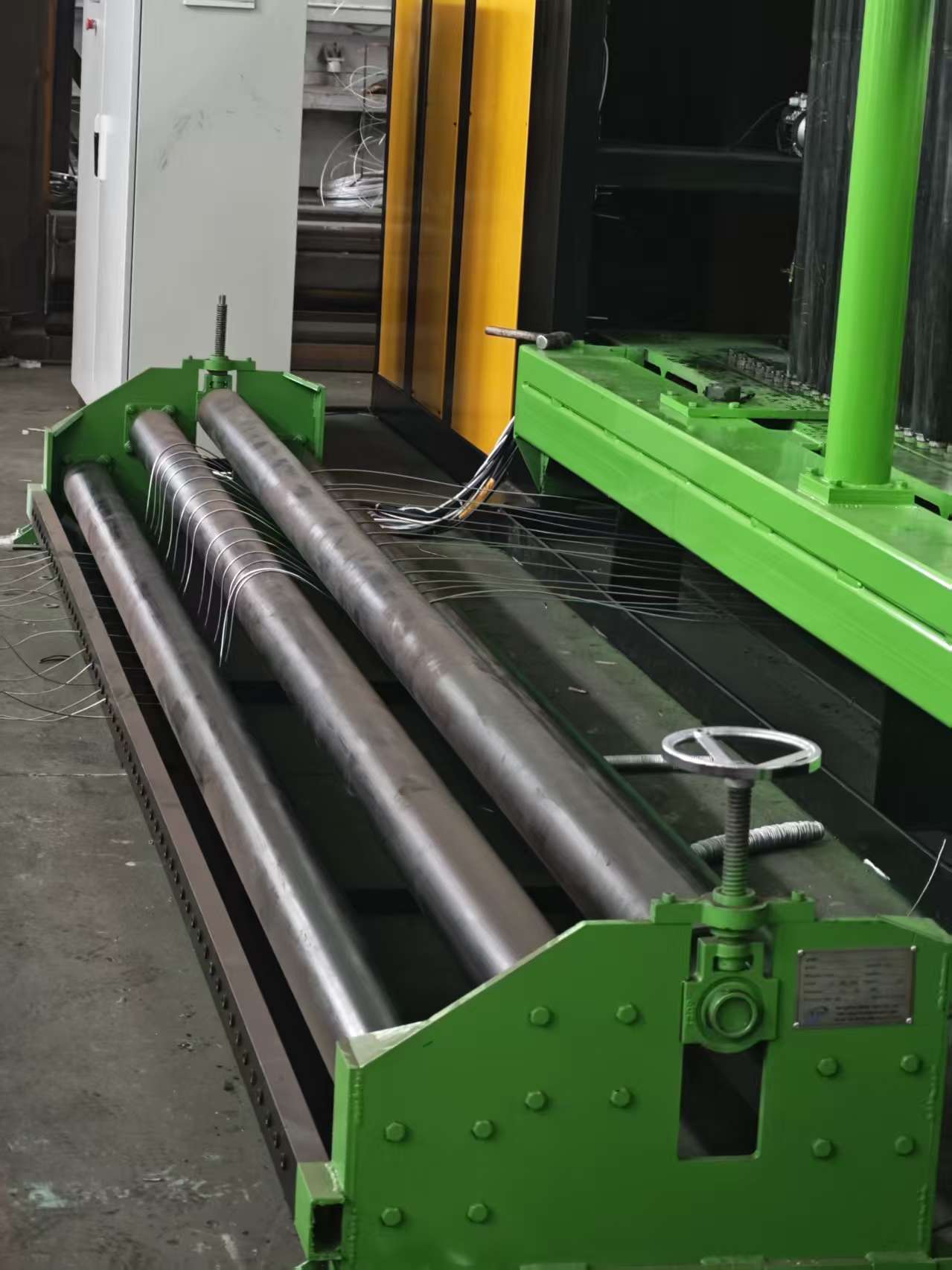

♦ Tension Machine
♦ Main Machine
♦ Net Winding Machine
♦ Spiral Coiling Machine
20 Years Experience in Gabion Machine projects for the whole world
Machine dispatch&Container Loading
1.What is your company main products:
A: We are manufactuer of gabion machine , chain link fence making machine, barbed wire making machine etc.
