What Causes Wire Jamming And Unfinished C-Ring Forming on C-Ring Machine

1. Introduction

The automatic C-ring machine is core supporting equipment for standardized gabion mesh and fence production, specializing in bending galvanized wire and Galfan alloy wire into standard fastening C-rings. In continuous industrial mass production, wire jamming and unfinished C-ring forming are the two most frequent and troublesome mechanical faults. Most manufacturers only perform simple wire cleaning and restart operation without analyzing the root mechanical causes, resulting in repeated failures, frequent downtime, high material scrap rate and unstable product quality. As a professional C-ring machine manufacturer with independent R&D and precision production capabilities, we combine metal forming mechanics, factory pre-delivery debugging standards and long-term after-sales case data. This article professionally analyzes the essential causes of jamming and incomplete forming, providing systematic troubleshooting and standardized maintenance guidance, helping global processing factories achieve low-fault and high-efficiency continuous production.

2.Raw Material Abnormity: Fundamental External Mechanical Cause

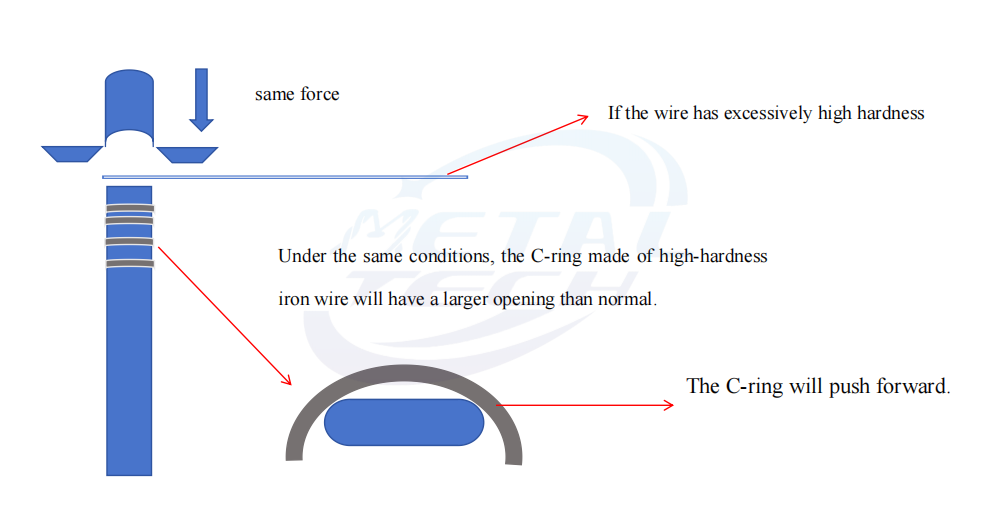

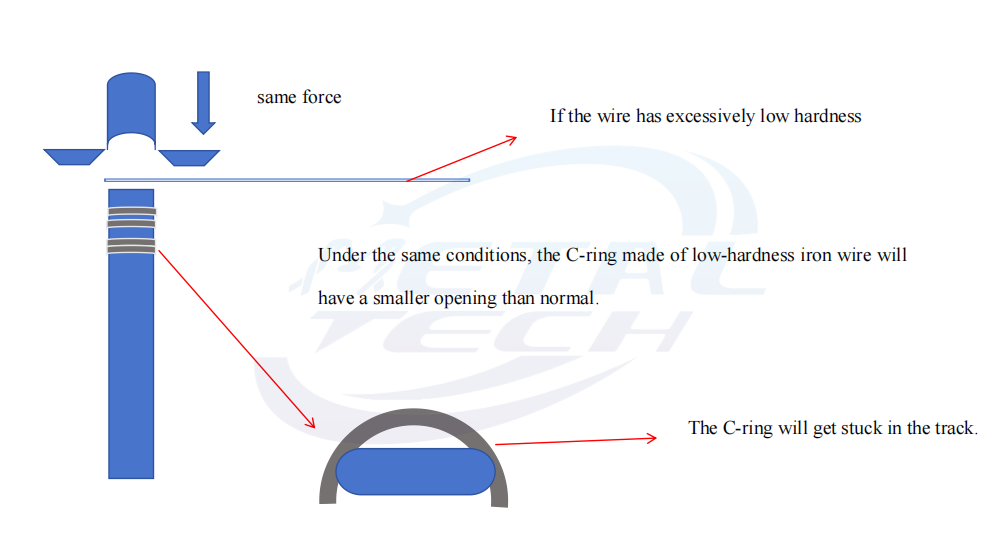

From the perspective of metal forming theory, wire physical uniformity directly determines feeding fluency and forming accuracy. Non-standard wire is the primary cause of jamming and defective forming. Uneven wire diameter, surface burrs, local torsion and inconsistent hardness will change the friction coefficient and bending stress during operation. Thickened wire segments or surface metal debris will increase feeding resistance instantly, causing wire stagnation and jamming in the guide groove and mold cavity. In addition, excessively hard or brittle Galfan wire produces severe elastic rebound after bending. The residual stress prevents the wire from fitting the mold track completely, resulting in open-shaped, semi-finished C-rings that fail to meet fastening standards. Rusty wire will continuously fall off oxide powder, accumulating in the feeding channel and narrowing the gap, which further aggravates long-term jamming risks. Our factory strictly matches wire specifications for each machine model and recommends standardized raw material selection to avoid forming failures caused by material mismatch.

3.Feeding and Straightening System Parameter Deviation

The feeding and straightening system is the front-end precision structure that controls wire linear conveying and positioning. Its assembly clearance and pressure parameters directly affect feeding stability, which is the key link to avoid jamming and forming defects. Roller pressure deviation is the most common fault. Insufficient roller clamping force leads to slippery wire and unstable feeding stroke, making each bending length inconsistent and causing unfinished forming. Excessive clamping pressure will crush the wire surface, produce metal filings and cause accumulated blockage inside the guide groove. Besides, long-term operation will cause straightening roller misalignment and guide sleeve wear. The wire deviates from the standard motion track during conveying, cannot accurately enter the forming mold, and eventually causes offset jamming and incomplete bending. As a professional manufacturer, our factory formulates unified roller pressure and gap calibration standards for different wire diameters, solving feeding system faults from structural precision debugging.

4.Forming Mold Wear and Misalignment (Core Precision Failure)

The forming mold is the core component that determines C-ring geometric dimensions and molding accuracy. Based on mechanical tolerance matching principle, mold clearance and cavity smoothness directly control wire bending trajectory. Long-term cyclic friction will cause mold cavity wear, surface scratches and tolerance deviation. Worn molds cannot provide uniform bending pressure, resulting in asymmetric stress on the wire and incomplete closed forming. Meanwhile, improper mold installation, offset assembly or loose fixing bolts will cause unilateral clearance deviation. During high-speed operation, the wire is forced to bend unevenly, producing deformed and unqualified C-rings. In addition, metal dust and wire debris accumulate in the mold cavity, occupying the forming space and hindering wire in-place molding, which triggers simultaneous jamming and forming failure. Our factory’s pre-shipment inspection standard includes mold flatness calibration and gap testing, ensuring each machine leaves the factory with qualified molding precision.

5.Transmission Mechanism Asynchronization and Mechanical Fatigue

C-ring forming is a highly coordinated linkage process of feeding, bending and cutting, driven by cams, gears and connecting rods. Transmission parts with insufficient lubrication, wear or loose positioning will cause action sequence disorder and stroke deviation. When the feeding mechanism completes wire delivery but the forming punch delays movement, the wire will be stuck in the mold gap. If the connecting rod assembly produces fatigue deformation, the forming stroke will be insufficient, resulting in unfinished wire bending. Long-term high-speed operation without maintenance will aggravate transmission vibration and dynamic imbalance, disrupting the coordinated mechanical rhythm. This kind of hidden asynchronous fault will not cause immediate shutdown but continuously produce defective products and intermittent jamming, which is difficult for ordinary operators to identify.

6. Unstandardized Operation and Overload Production

Exceeding factory-rated operating speed and long-term overload operation are artificial causes of accelerated failure. Each C-ring machine has a designed mechanical cycle and load limit. Blindly increasing operating speed pursues output but makes the mechanical system unable to complete bending and resetting within the effective cycle time, causing wire jamming and incomplete forming. Continuous non-stop operation will cause thermal expansion of molds and guide parts, reducing reserved moving clearance and increasing jamming probability. Standardized operation and intermittent heat dissipation are necessary maintenance measures to maintain long-term stable precision of the equipment.

7.Conclusion

Wire jamming and unfinished C-ring forming are systematic mechanical problems caused by the combined influence of raw material performance, feeding precision, mold accuracy, transmission coordination and operating parameters. Regular fault cleaning cannot solve fundamental problems. Only by following mechanical principles and factory standardized maintenance can users eliminate hidden dangers thoroughly. As a professional C-ring machine manufacturer, we adhere to strict factory precision testing and provide global buyers with complete parameter calibration standards, mold maintenance guidelines and technical after-sales support. Standardized operation and scientific maintenance can effectively reduce defective rate and downtime, maximize production efficiency, and extend the service life of C-ring machine equipment.
