Introduction
A flat, evenly wound mesh roll is one of the most visible quality indicators of chain link fence production. When customers unroll a mesh panel and find it wavy, curled, twisted or bulging on one side, their first impression is that the product is low quality — regardless of how uniform the individual diamond holes may be. For fence manufacturers, non-flat mesh not only leads to customer complaints and returns, but also creates installation problems: a wavy mesh cannot be stretched tightly on fence posts, leaving sagging sections that compromise both appearance and security performance.
Mesh flatness problems are extremely common on chain link fence machine production lines, and many operators struggle to identify the root cause because flatness is affected by multiple systems working simultaneously — tension control, spiral forming, mesh pulling, rolling and even the machine foundation. As a professional chain link fence machine manufacturer with extensive after-sales experience, this article systematically explains the six most common causes of non-flat mesh rolls, the mechanical principles behind each defect, and practical adjustment methods to restore flat, professional-quality output.
1. Common Types of Mesh Flatness Defects
Before troubleshooting, it is important to recognize that "not flat" is not a single defect — it covers several distinct symptoms, each pointing to a different root cause. The most common types include: edge waviness (one or both selvedges form a wave pattern while the center stays flat), longitudinal curling (the entire mesh curves upward or downward like a bowl), lateral twisting (the mesh spirals along its length), diagonal skew (diamond holes tilt consistently to one side), and roll bulging (the wound roll has an uneven surface with high and low spots).
Identifying the specific defect pattern is the first step in efficient troubleshooting, because each symptom maps to a particular mechanical system. Edge waviness typically points to uneven tension across the mesh width. Longitudinal curling usually stems from spiral pitch inconsistency. Lateral twisting suggests pulling roller misalignment. Diagonal skew indicates synchronization error between forming and pulling cycles. Understanding this defect-to-cause mapping allows maintenance personnel to focus their adjustment efforts rather than randomly changing parameters. Our factory after-sales team uses a standardized defect classification chart to guide remote diagnosis, helping customers resolve most flatness issues within 30 minutes via video call.
2. Uneven Wire Tension: The Leading Cause of Edge Waviness
Uneven wire tension across the mesh width is the single most frequent cause of non-flat mesh on a chain link fence machine. In an ideal production process, the wire entering the forming head maintains identical tension on both sides. When tension differs — even by a small margin — the side with higher tension forms tighter spirals with slightly smaller pitch, while the lower-tension side forms looser spirals. After the mesh is interlocked and released from the machine, the tighter side contracts more than the looser side, pulling the entire mesh into a wave or curl.
Tension imbalance typically originates from three sources. First, the wire payoff reel may have uneven brake resistance, causing one strand to feed with different drag. Second, the straightening rollers may be adjusted asymmetrically, introducing unequal friction. Third, on machines processing two wires simultaneously (double-wire models), the two payoff stations may have different reel weights or brake pad wear levels. The fix involves measuring tension on each wire strand with a tension gauge, then adjusting brake pressure and straightening roller gap until both readings match within ±5%. Our factory-equipped magnetic particle brakes provide stepless tension adjustment with digital readout, making this balancing process quick and repeatable. We also recommend checking tension balance at the start of every production shift, as brake pad wear gradually shifts tension over time.
3. Spiral Pitch Inconsistency and Longitudinal Curling
When the entire mesh curls upward or downward along its length — rather than waving on the edges — the cause is usually inconsistent spiral pitch along the production direction. Each spiral in a chain link mesh must have identical pitch (the distance between consecutive turns). If pitch gradually increases or decreases along the roll length, internal stress builds up in the interlocked structure, and when the mesh is cut free, it curls to relieve that stress. Increasing pitch typically causes upward curling, while decreasing pitch causes downward curling.
Pitch drift on a chain link fence machine usually stems from either mechanical wear or parameter drift in the feeding system. Feeding roller wear causes gradual reduction in actual feed length per cycle, producing progressively tighter spirals. Servo pulse equivalent drift produces a similar but more uniform pitch error. The diagnostic method is to measure pitch at three points — beginning, middle and end of a 10-meter mesh sample. If pitch varies by more than 0.5mm across these points, the feeding system needs calibration. Our factory procedure includes feeding accuracy verification using a laser displacement sensor, calibrating the actual feed length per pulse to within ±0.02mm. After calibration, pitch consistency across a full 50-meter roll stays within ±0.3mm, effectively eliminating longitudinal curling caused by pitch drift.
4. Pulling and Rolling System Misalignment

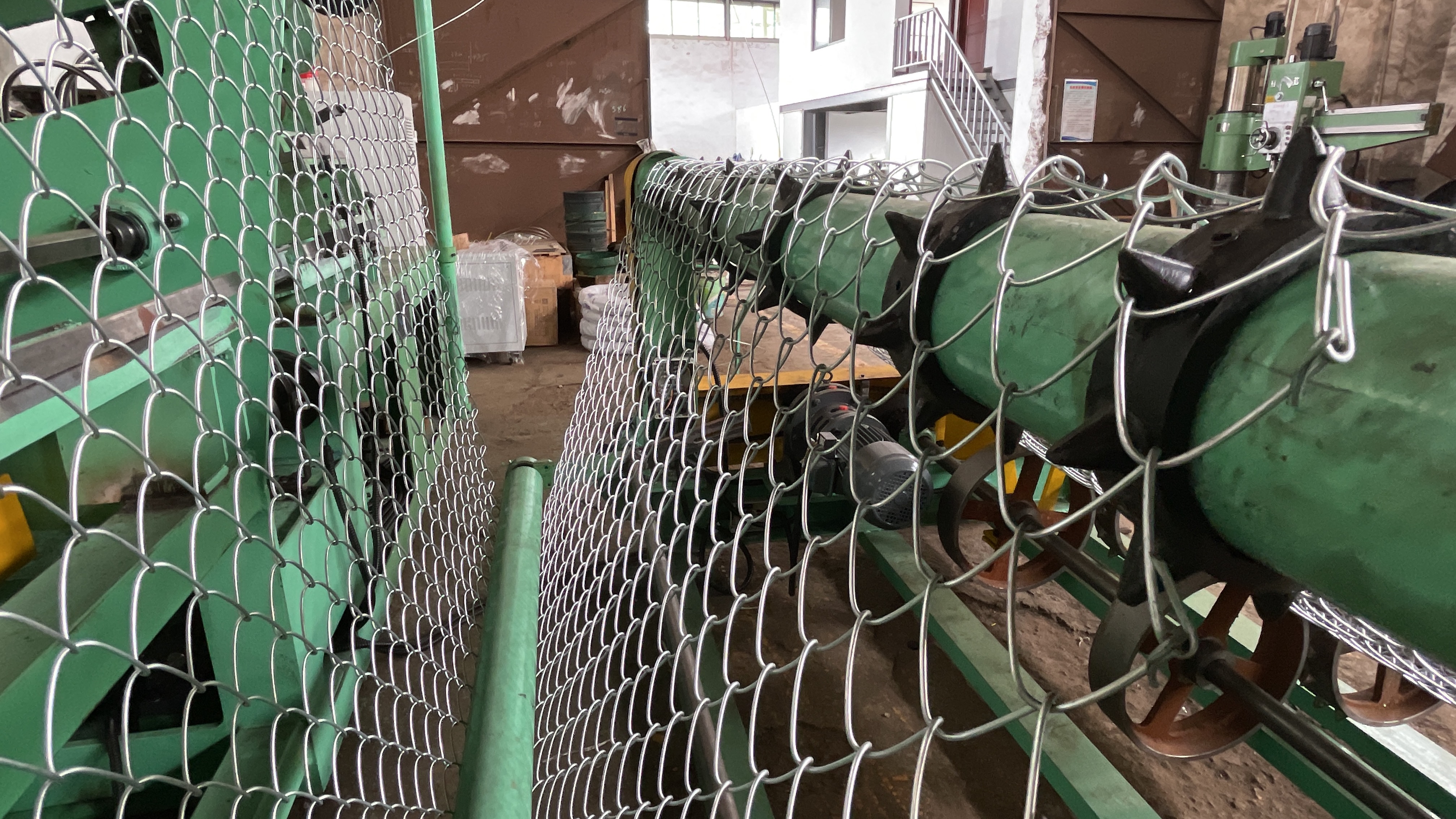

The mesh pulling and rolling system is responsible for drawing finished mesh away from the forming head at a precisely matched speed and winding it into a tight, uniform roll. When pulling rollers are not parallel to the forming head axis — even by a fraction of a degree — one side of the mesh is pulled slightly faster than the other. This speed differential accumulates across the mesh length, producing lateral twisting and diagonal skew. The defect becomes progressively worse along the roll, often barely visible at the start but severe after 20-30 meters.

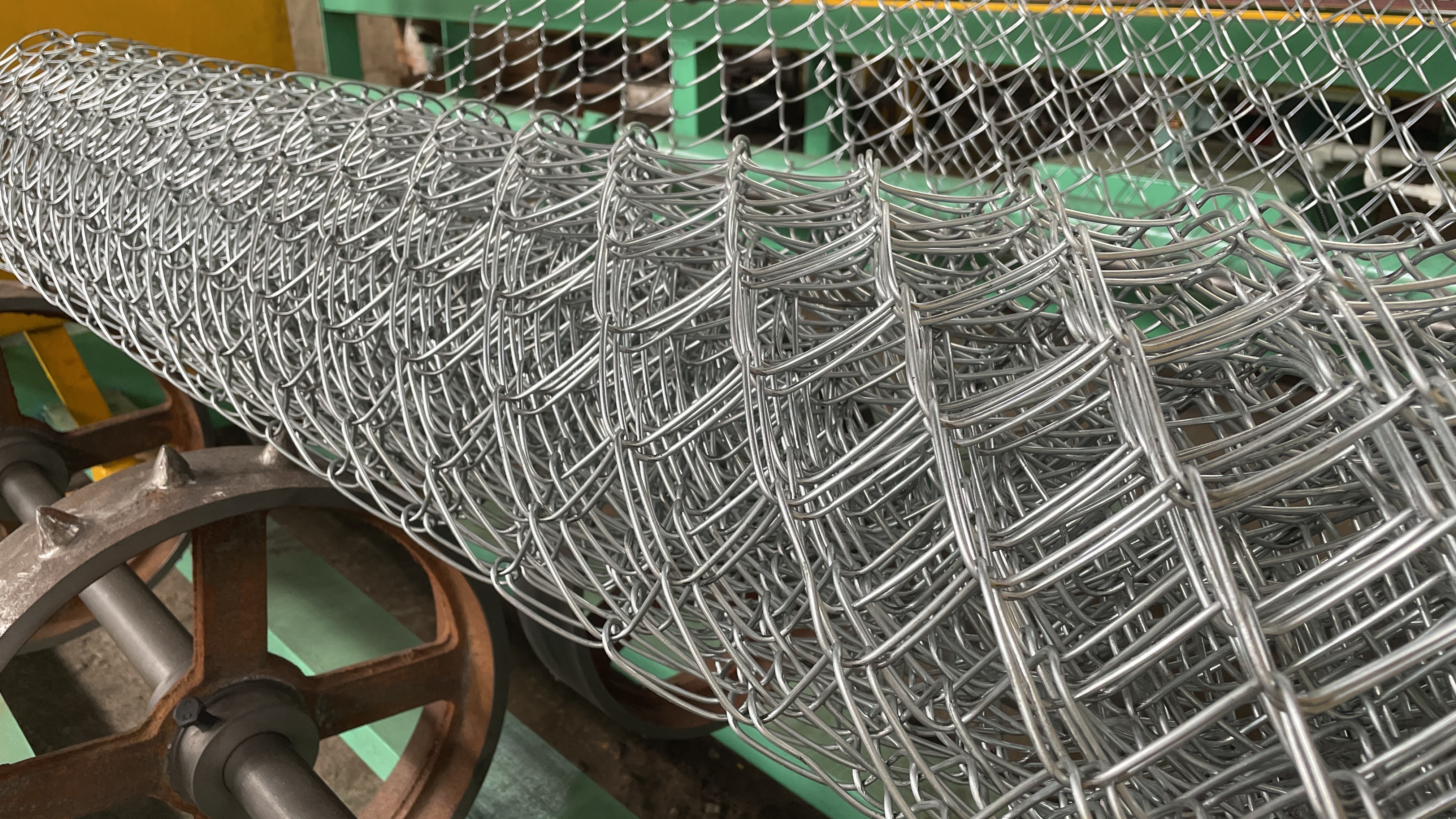

Rolling system issues also cause roll bulging. If the winding roller pressure is uneven or the roll guide oscillates inconsistently, the mesh winds tighter on some sections than others, creating a bumpy roll surface. The fix begins with checking pulling roller parallelism using a feeler gauge — the gap difference across the roller width should not exceed 0.05mm. Rolling pressure should be adjusted to increase gradually as the roll diameter grows, maintaining consistent winding density. Our automatic chain link fence machine models feature a servo-controlled pulling system with electronic gearing to the forming head, eliminating mechanical parallelism drift. The hydraulic rolling station maintains constant surface pressure regardless of roll diameter, producing rolls with smooth, uniform surfaces suitable for direct export packaging.
5. Wire Material Internal Stress and Springback
Not all flatness problems originate from the machine — raw wire condition plays a significant role. Wire that has been wound tightly on a payoff reel for extended storage carries residual coiling stress. When this wire is straightened and formed into spirals, the residual stress does not fully disappear; it remains embedded in the finished mesh and releases gradually after cutting, causing the mesh to curve toward the side where stress was higher. This is why mesh produced from the same machine settings can be flat with one wire batch but wavy with another.
Wire hardness variation also affects springback behavior. Harder wire springs back more after spiral forming, and if hardness varies along the wire length — a common issue with inconsistent heat treatment — springback differs section by section, producing irregular flatness defects. The solution starts with proper wire storage: keep payoff reels in vertical orientation and allow wire to acclimate to workshop temperature before production. An effective straightening system with 5-7 staggered straightening rollers can remove most residual coiling stress before forming. Our chain link fence machine models are equipped with adjustable multi-roller straightening units, and we provide customers with wire quality acceptance guidelines including recommended hardness tolerance (HV variation within ±15) to prevent material-related flatness issues at the source.
6. Machine Frame Level and Foundation Stability
The final factor is often the most overlooked: the machine frame itself. A chain link fence machine operates at high cyclic speed, and if the frame is not level or the foundation lacks rigidity, the resulting vibration introduces subtle but consistent misalignment between the forming head, pulling rollers and rolling station. The typical symptom is a flatness defect that cannot be eliminated no matter how tension, pitch and pulling parameters are adjusted — because the root cause is geometric distortion of the machine frame itself.
Frame level should be checked with a precision spirit level or laser leveling tool at installation and re-verified every 6 months. The foundation must meet specified flatness tolerance (0.5mm per meter) and anchor bolts must be torqued to specification. On concrete floors with settling or cracking, shimming may be required to restore level. Our installation service includes frame leveling verification using electronic level instruments with 0.01mm/m accuracy, and we run a full-load test roll after leveling to confirm mesh flatness before handover. This foundation-level precision is why our machines maintain mesh flatness stability over years of production without the gradual drift that plagues poorly installed equipment.
Conclusion
Non-flat mesh rolls are a quality problem with multiple possible causes, ranging from simple tension imbalance to frame-level distortion. Effective troubleshooting follows a systematic sequence: identify the defect pattern, check tension balance first, verify pitch consistency, inspect pulling alignment, evaluate wire condition, and finally confirm frame level. This structured approach resolves over 90% of flatness issues without unnecessary part replacement.
As a professional chain link fence machine manufacturer, we design flatness control into every layer of our equipment — from magnetic tension brakes and servo-synchronized pulling to hydraulic constant-pressure rolling and precision-ground frame structures. Every machine undergoes a 48-hour continuous production test before shipment, with mesh flatness verified across full-width, full-length samples. We also provide detailed troubleshooting manuals, defect classification charts and lifetime remote technical support, helping our customers maintain professional, export-quality mesh flatness throughout the service life of their equipment. If flatness problems persist despite systematic adjustment, contact our after-sales engineering team for personalized diagnosis.
