Chain link fence machine is the core equipment for producing diamond mesh fences widely used in highway protection, stadium isolation, farm enclosure, municipal greening and security protection projects. For finished chain link mesh, mesh uniformity is the most intuitive and critical quality standard, which directly affects the aesthetics, structural tension, installation flatness and overall service life of the fence. Uneven mesh, including inconsistent mesh size, irregular diamond shape, uneven wire spacing and distorted mesh surface, is one of the most common quality problems in daily production. Unqualified uneven mesh products will not only reduce the market value of finished products and cause customer returns, but also lead to material waste and low production efficiency. Most uneven mesh issues are not caused by equipment aging, but by improper operation, parameter deviation, component wear and unreasonable daily debugging. This article systematically analyzes the main causes of uneven mesh of chain link machines and provides targeted, operable solutions to help manufacturers achieve stable and standardized mesh production.
2. Unstable Wire Tension: The Primary Cause of Irregular Mesh
Wire tension instability is the leading factor leading to uneven chain link mesh. The chain link weaving process requires continuous and uniform wire feeding tension to ensure that the steel wire is stretched flat and woven into standard diamond mesh. In actual production, worn tension springs, failed tension bearings and loose tension adjusting devices will cause fluctuating wire tension. When the tension is too tight, the wire is overstretched, resulting in too small mesh and tight mesh surface; when the tension is too loose, the wire sags during weaving, causing oversized mesh, loose weaving and deformed diamond holes.
In addition, irregular wire coil placement and unsmooth wire feeding will also cause instantaneous tension changes. Many factories ignore the inspection of the tension system during long-term continuous production, resulting in gradual fatigue and aging of tension parts. Long-term tension deviation will form batch uneven mesh problems. To solve this problem, operators need to regularly check and replace fatigue tension springs, ensure flexible operation of tension bearings, and calibrate the tension system before starting each batch of production. Keeping constant wire tension is the basic premise of uniform mesh weaving.
The wire feeding system is responsible for quantitative and stable wire delivery, which directly determines the consistency of mesh spacing. Abnormal operation of the wire feeding mechanism is another key cause of uneven mesh. Common problems include worn wire feeding wheels, blocked wire feeding grooves and asynchronous wire feeding speed. Long-term friction will cause groove wear of the wire feeding wheel, making the wire position offset during transmission. The wire cannot be fixed stably, resulting in different mesh sizes in the same mesh surface.
Moreover, excessive wire feeding speed or unstable speed frequency will cause disordered wire matching. For fully automatic chain link machines, inconsistent parameter settings of the wire feeding motor will lead to intermittent wire feeding, further aggravating mesh distortion. The effective solution is to clean the wire feeding groove and remove metal dust and wire scraps before daily production, regularly check the wear degree of the wire feeding wheel, replace severely worn parts in time, and unify the wire feeding speed parameters according to the wire diameter and mesh specifications to ensure continuous and stable wire feeding.

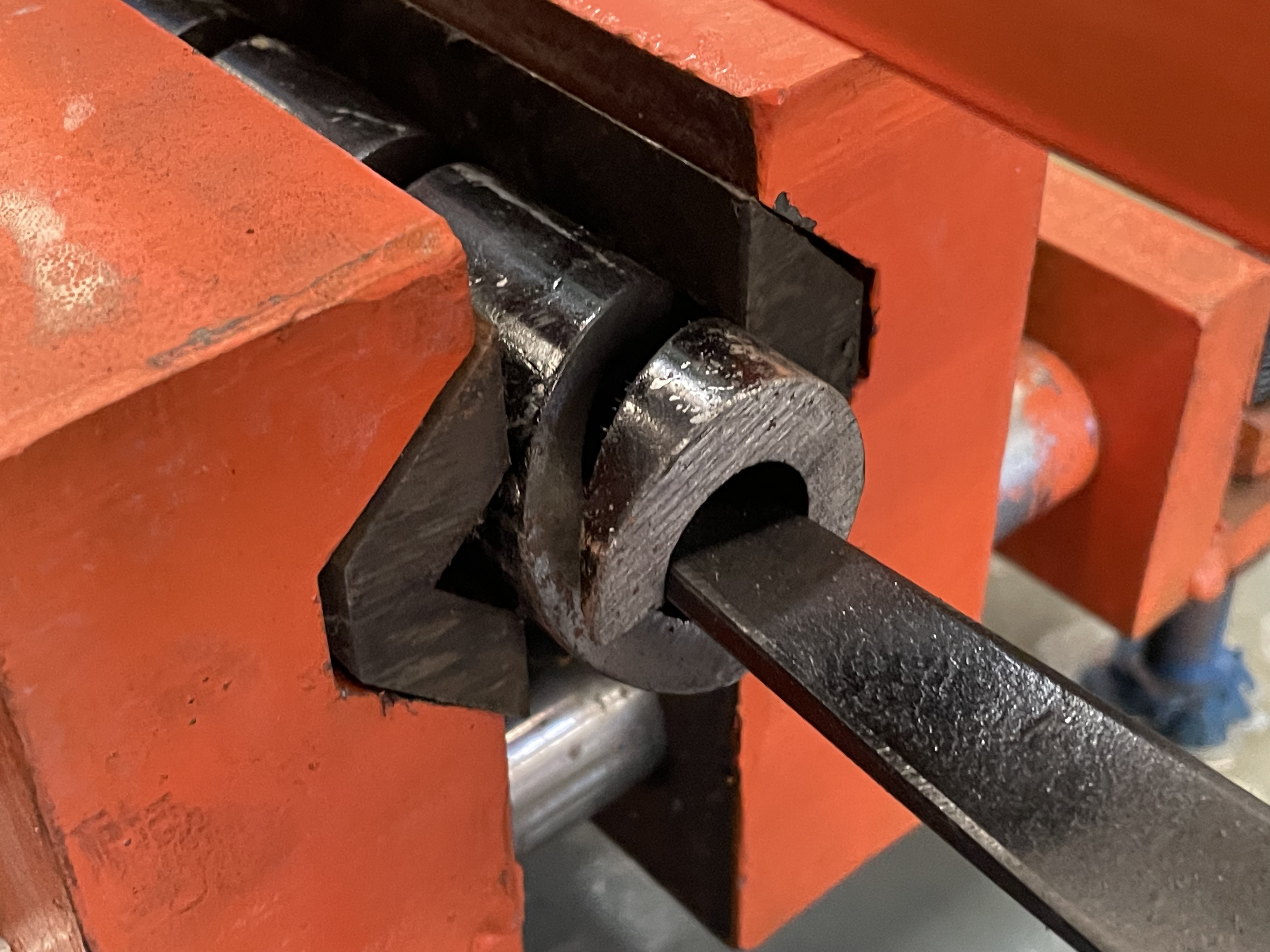

Chain link fence weaving depends on the precise coordination of swinging arms, weaving needles, gear sets and transmission components. The wear and synchronization deviation of these core weaving parts will directly destroy mesh uniformity. After long-term high-intensity operation, the weaving needle will be worn or deformed, and the swinging arm will have loose gaps, resulting in inaccurate weaving trajectory. The gear transmission gap increases due to wear, leading to asynchronous weaving rhythm and irregular diamond mesh shape.
Many production enterprises only focus on output and ignore the regular inspection of transmission components. Minor mechanical wear will gradually evolve into large-scale mesh quality problems. The standard maintenance method is to regularly check the tightness and wear of weaving needles, swinging arms and gears, adjust the mechanical gap of the transmission system, and supplement lubricating oil for rotating parts to ensure flexible and synchronous operation of all weaving components. Timely mechanical calibration can effectively avoid mesh deformation caused by mechanical errors
Unreasonable parameter debugging and non-standard manual operation are important artificial causes of uneven mesh. Different wire diameters and mesh specifications correspond to matched weaving speed, twisting frequency and cutting parameters. Blindly increasing the production speed without matching parameter adjustment will cause incomplete wire twisting and inconsistent mesh shaping. In addition, unskilled operators often have problems such as incorrect wire threading position and irregular wire coil fixing in the early stage of production, which will lead to overall mesh deviation in the whole batch.
For servo automatic chain link machines, mismatched servo parameters will cause uncoordinated coordination between weaving and wire feeding, resulting in staggered mesh and uneven density. Factories need to formulate standardized parameter debugging guidelines for different product specifications. Operators must complete parameter calibration and wire threading inspection before mass production, and prohibit random adjustment of operating parameters during equipment operation to eliminate mesh quality problems caused by human errors.
In addition to equipment and operation factors, raw wire materials and production environment will also affect mesh weaving effect. Uneven wire diameter, rough wire surface and inconsistent wire hardness will lead to different tension bearing effects during weaving, resulting in irregular mesh. At the same time, severe vibration of the workshop foundation, excessive humidity and dust accumulation on the equipment will affect the precision operation of the weaving system and cause subtle mesh deviation.
Manufacturers need to control the quality of raw materials and select qualified wires with uniform specifications for production. Keep the workshop ground stable and clean, regularly clean the dust and sundries on the equipment surface and transmission parts, and create a stable production environment for the chain link machine, so as to further guarantee the uniformity of finished mesh.
Uneven mesh of chain link machine is almost caused by tension instability, abnormal wire feeding, mechanical wear, parameter errors and non-standard operation, rather than equipment failure. Through daily standardized inspection, regular component maintenance, accurate parameter debugging and standardized operation management, all uneven mesh problems can be completely solved. Stable mesh uniformity is not only the basic guarantee of product quality, but also the key for manufacturers to improve product competitiveness, reduce scrap loss and obtain long-term stable orders in the global chain link fence market. Adhering to refined equipment management is the core to maintain high-quality and high-efficiency production of chain link mesh.
