CS-A Type Barbed Wire Making Machine Manufacturer ,concertina Bob Wire Making Machine

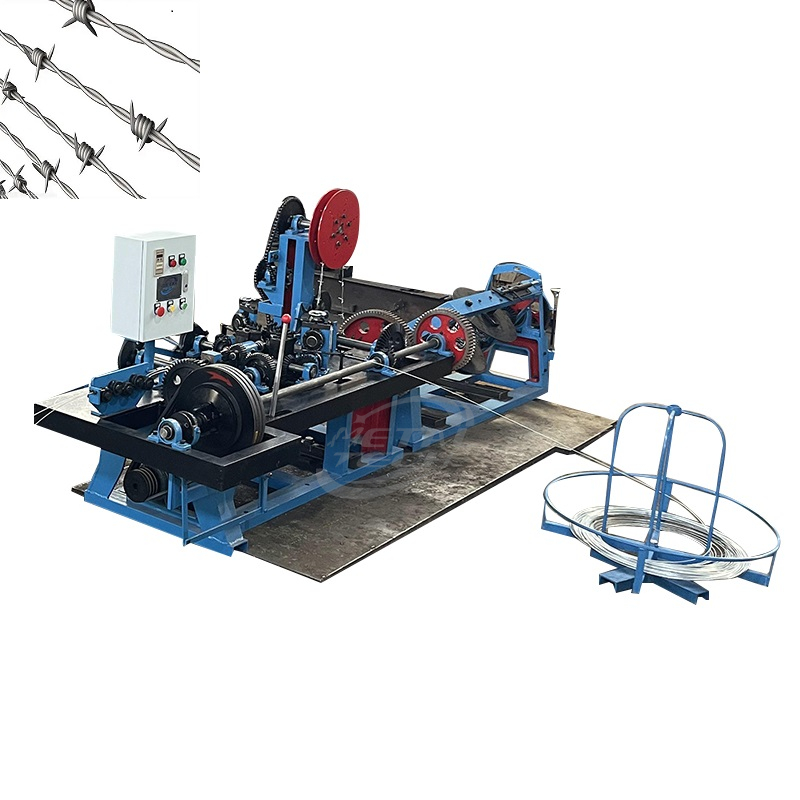

Metal Tech Barbed Wire Making Machine is a specialized equipment used for producing barbed wire (i.e., iron or steel wire mesh with barbs). Below is a detailed introduction to the Barbed Wire Making Machine
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • CS-A

  • METAL TECH

 I. Types and Characteristics

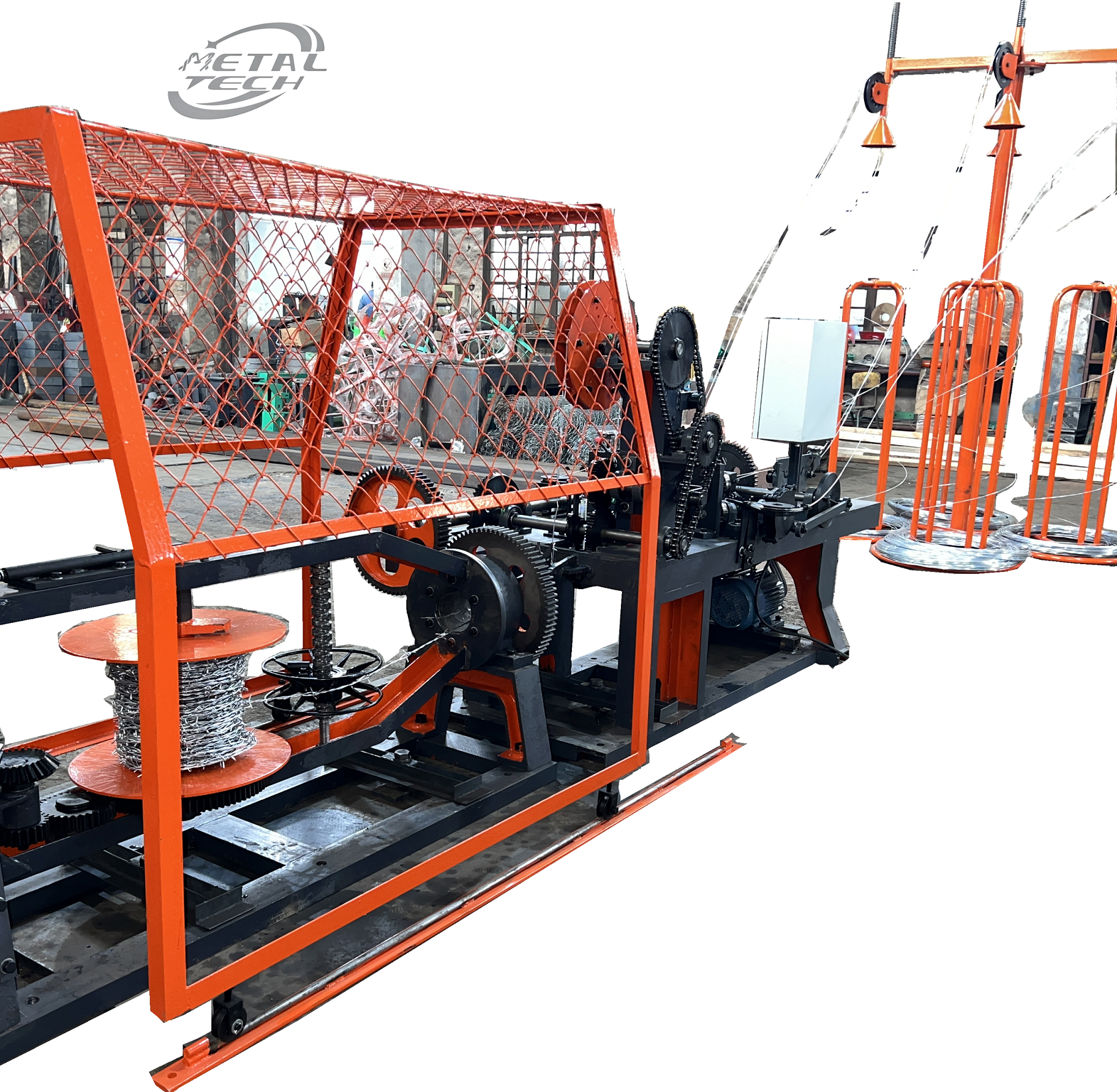

Barbed Wire Making Machines come in various types, including fully automatic, semi-automatic, and models with different twisting methods such as traditional twisting and double twisting. These machines typically possess the following characteristics:

High Efficiency:They can produce barbed wire continuously and stably, improving production efficiency.

Easy Operation: With a reasonable design, they are simple to operate, reducing operational difficulty and labor costs.

Flexible Adjustment: They can adjust the specifications, sizes, and shapes of the barbed wire according to customer needs, meeting diverse demands.

II. Main Technical Parameters

The main technical parameters of Barbed Wire Making Machines include motor power, machine weight, wire diameter range, and barb spacing. These parameters vary by model but are usually adjustable within a certain range. For example, some models have a motor power of 3kW, a machine weight of 1000kg, a wire diameter range of 2.0-3.0mm, and multiple options for barb spacing such as 7.5cm, 10cm, 12.5cm, and 15cm.

III. Application Fields

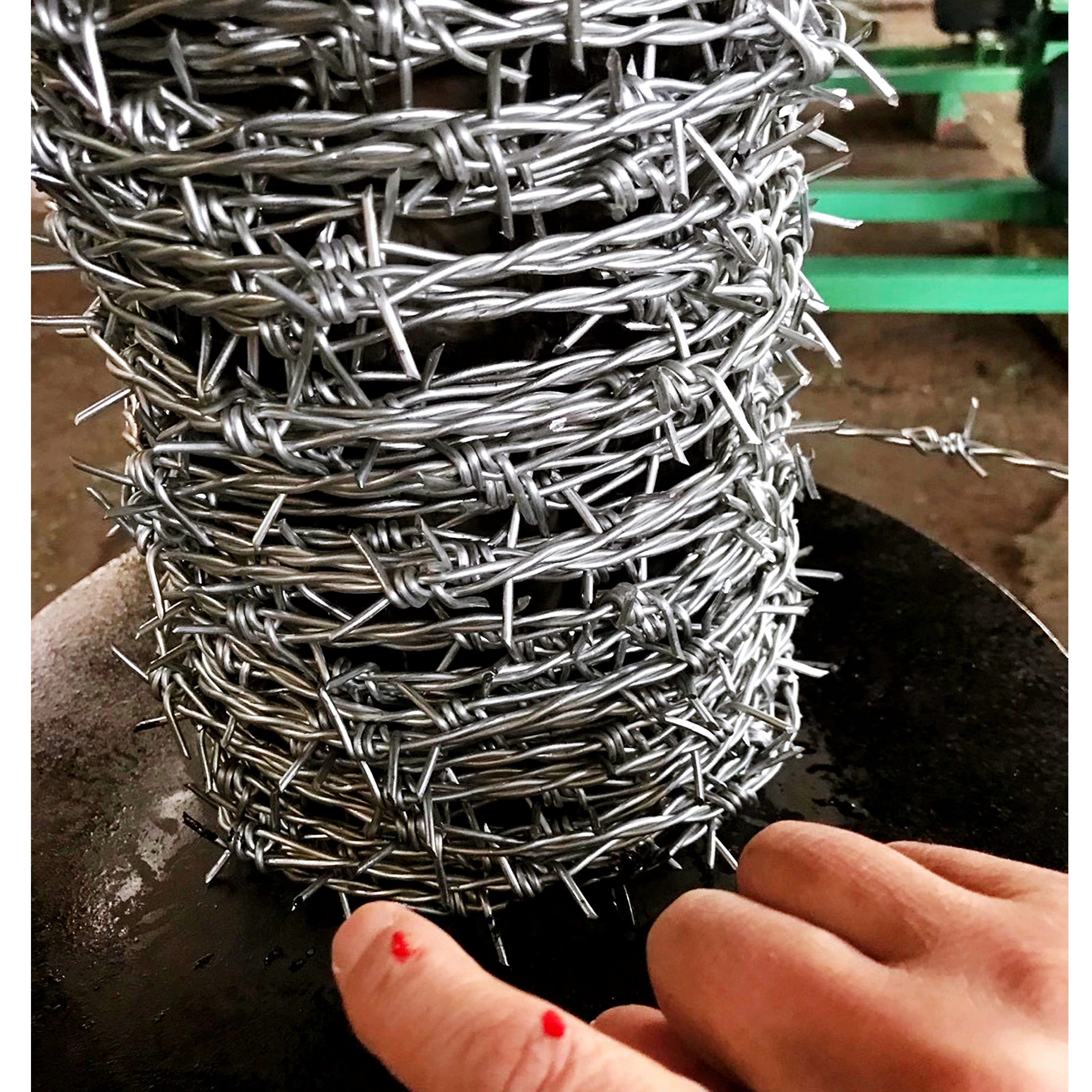

Barbed wire produced by Barbed Wire Making Machines is widely used in agricultural fencing, safety protection, defense, and other fields. Especially in places where it is necessary to prevent animal intrusion or unauthorized personnel entry, barbed wire has been widely applied for its unique protective effect.


Item

Unit

CS-A

CS-B

CS-C

Motor power

kw

2.2

2.2

2.2

Voltage

v

220V.60HZ

Main shaft speed

r/min

402

355

355

Strand wire diameter

mm

1.6-3.0

1.8-3.0

1.6-2.8

Barb wire diameter

mm

1.6-2.8

1.8-2.2

1.6-2.2

Barb pitch

inch

3/4/5/6

3/4/5/6

4/5/6

Twist number

/

3-5

3

7

Raw material

/

Galvanized wire, PVC coating wire, black wire etc

Production

/

20m/min

17m/min

17m/min

Weight


1100KG

950KG

1100KG

HS code

8463300000

Packing size

3300x1250x1500m

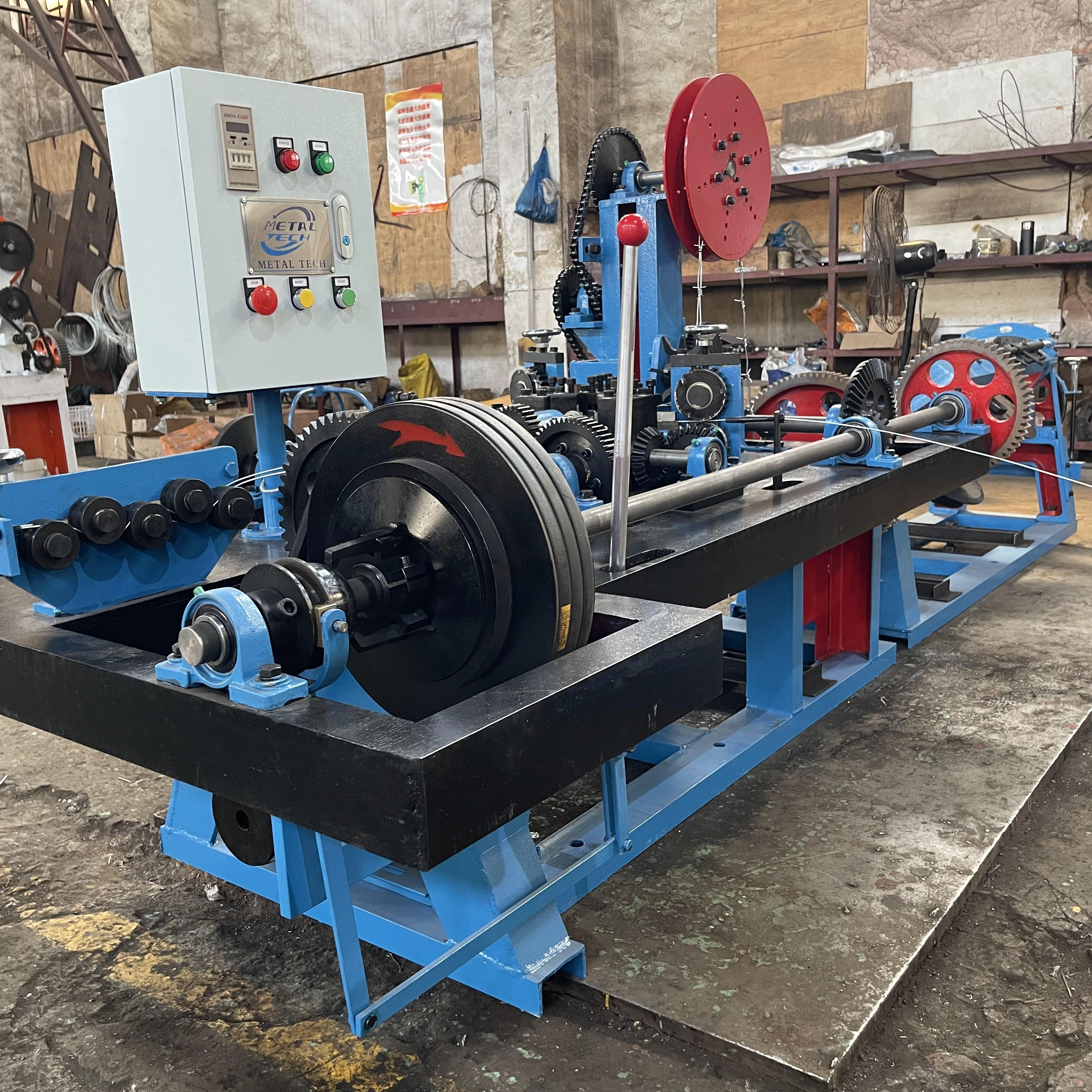

2022_05_17_09_50_IMG_4195_3009_3009微信图片_20220419113506微信图片_20221214115848微信图片_20221216170842 (2)
